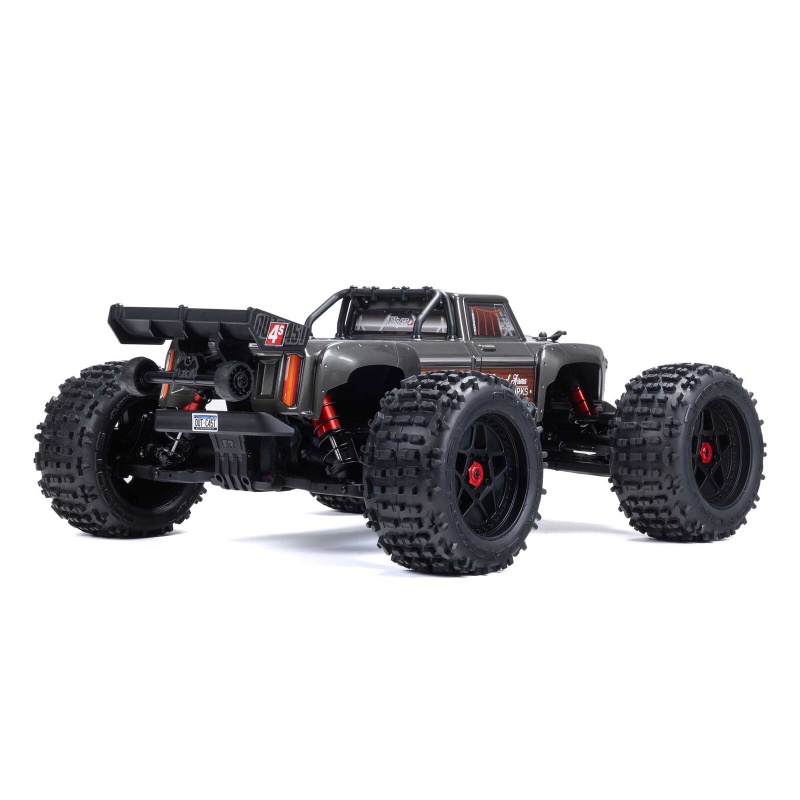

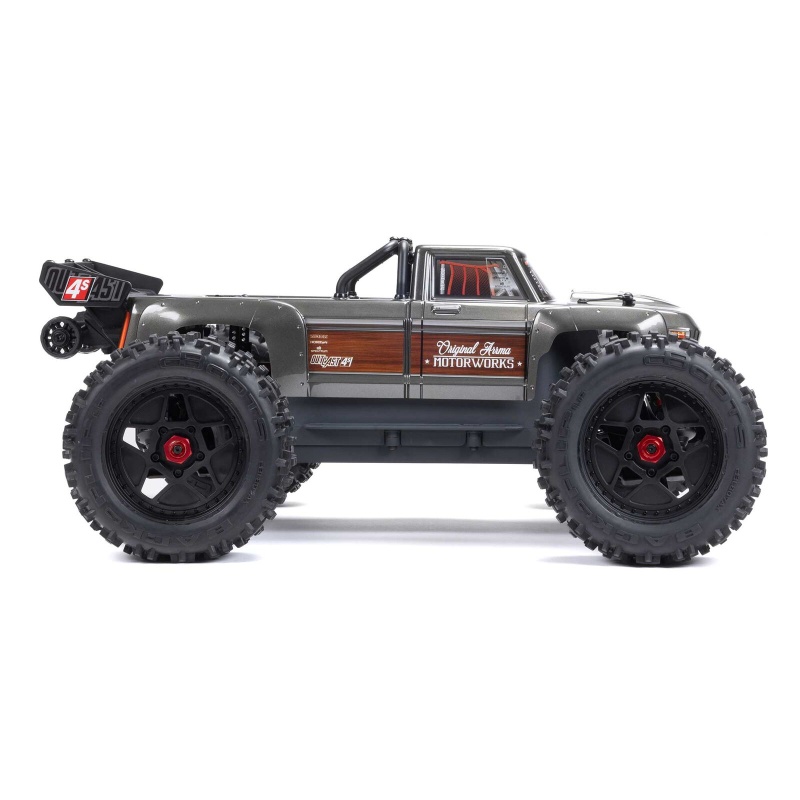

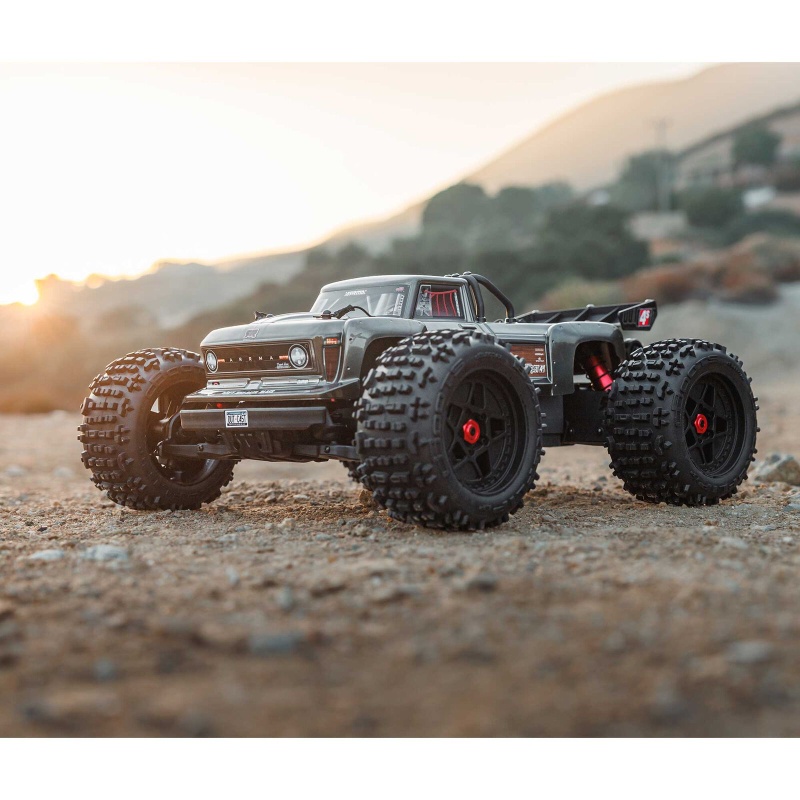

Arrma 1/10 Outcast 4S V2 BLX 4WD RTR, Gunmetal
Video
KEY IMPROVEMENTS:
- Metal center differential for improved traction

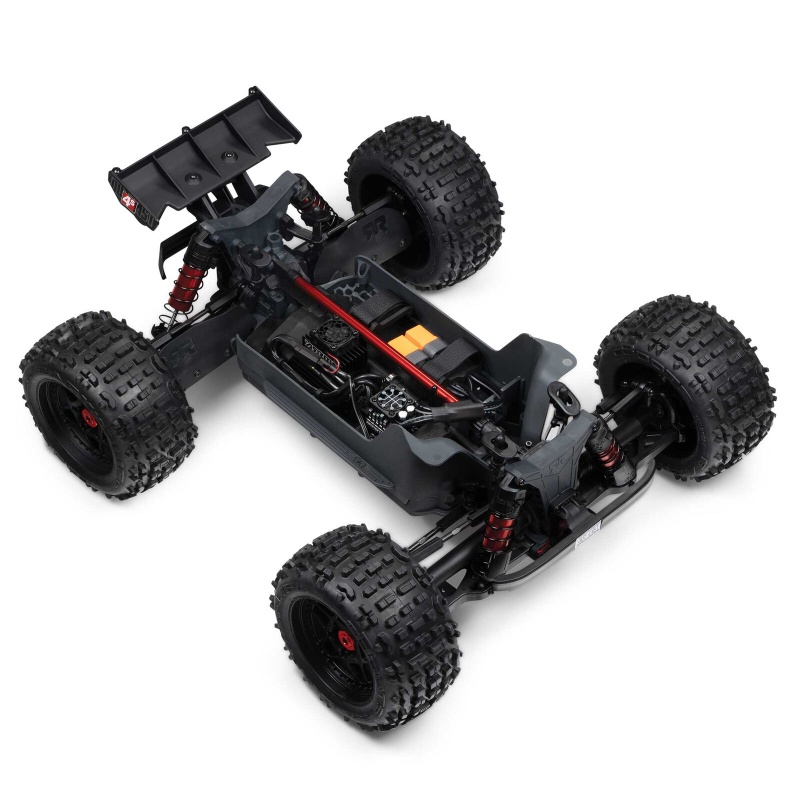

- Updated chassis with center diff module, hinge pin bracing, and dirt drain
- Outdrive protectors, taller side guards, and wishbone dirt guards
- Higher torque Spektrum S662 metal-geared digital servo with alloy case center
- Cooler running Spektrum Firma 120A V2 Smart ESC

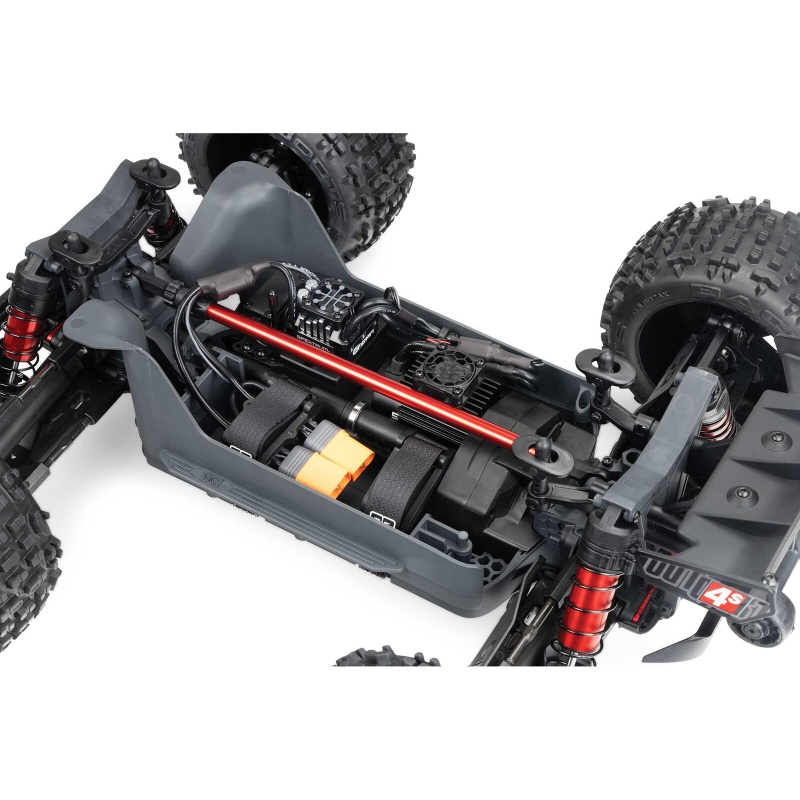

- Improved battery retention system with wire clips
ADDITIONAL PROVEN FEATURES:
- Fully assembled, finished, and ready-to-run
- Spektrum SLT3 2.4GHz transmitter and dual protocol SR315 receiver
- Spektrum Firma 3668 2400Kv brushless motor with ARRMA heatsink and cooling fan
- EXB all-metal gear diffs
- EXB CVD front and rear driveshafts
- Wide 17.72 inch front and rear track for aggressive bashing
- Long 20.28 inch chassis for stability and control
- Shorter 12.32 inch wheelbase for stunt capabilities
- Rubber shielded bearings throughout
- Center support brace for maximum durability
- Double wishbone front and rear suspension
- Oil-filled aluminum shocks with silicone O-rings
- High shock towers for longer travel
- Steering system with stone clearance
- Tough black multi-spoke wheels
- CNC machined, red anodized 17mm wheel hubs
- Vented multi-terrain dBoots BACK-FLIP LP low-profile tires
- Adjustable turnbuckles
- Adjustable ride height
- Adjustable body mounts
- Front bumper and protective lower front and rear skid plates
- Wheelie bar with rubber tires
- 2-Year limited warranty (see website for details)
OVERVIEW
Loaded with legendary ARRMA toughness and speed, the 1/10 scale OUTCAST 4S BLX Stunt Truck is capable of more than simple off-road bashing. Its short 12.32 inch wheelbase allows flips and makes it easy to maneuver nimbly through obstacles and terrain.
Built on the latest evolution of the 4S BLX platform — the affordable middle ground between agile 3S BLX vehicles and bigger, more powerful 6S BLX machines — this version of the OUTCAST is ready for amped-up, all-road blasting and stunting! It turns up the dial on the stunt truck’s capabilities so anyone can experience next-level ARRMA handling, performance, and speed.

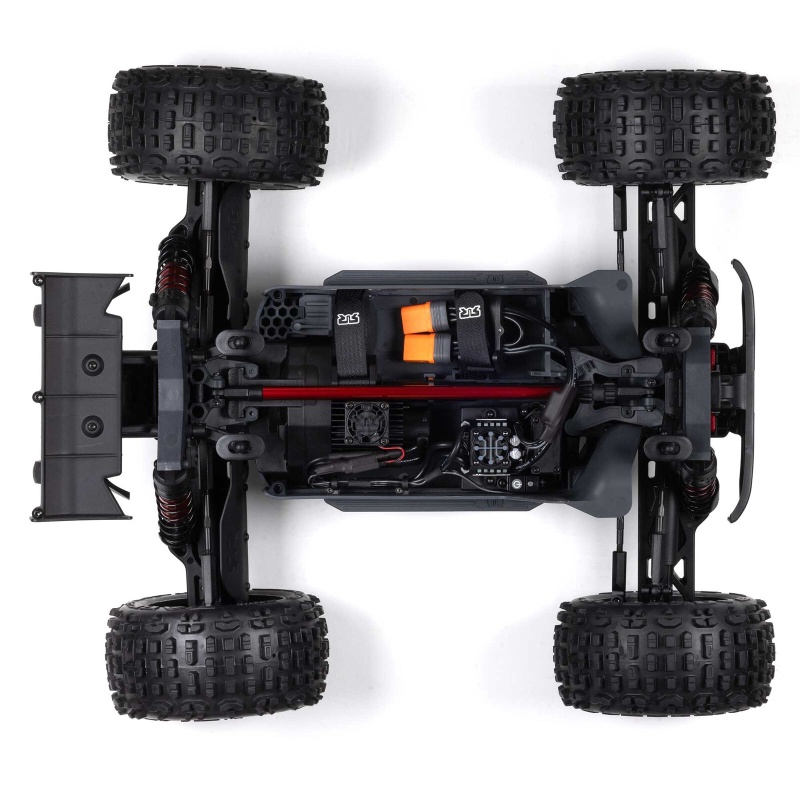

The updates drivers have wanted most are included, starting with a strengthened, diff compatible chassis. The ARRMA OUTCAST 4S BLX now has a center diff module that holds an aluminum-cased center differential. Whatever the surface conditions are, the center diff helps you grab the ultimate traction. And with wishbone dirt guards, outdrive protectors, and taller side guards providing added defense against dirt and debris, the OUTCAST 4S BLX stands up to furious blasting and stunting over off-road or paved surfaces with equal ease.
ARRMA has also amped up the OUTCAST stunt truck’s 4S-capable Spektrum brushless power system for more intense all-road action. A cool-running Spektrum Firma 120A Smart V2 waterproof ESC with IC5 connectors (EC5 compatible) adds punch and improves the driving feel. Steering has been strengthened with a Spektrum S662 metal-geared digital servo that includes an alloy center case. Its higher torque sharpens the truck’s maneuvering capabilities at high speeds.
These updates join a large number of proven ARRMA 4S BLX features — from high shock towers, long oil-filled shocks, and wide arms for plush suspension travel, to steel diff gears and EXtreme Bash CVD front and rear driveshafts for unstoppable power delivery. The OUTCAST 4S BLX also incorporates the popular ARRMA easy-access modular design to make routine maintenance fast and simple.

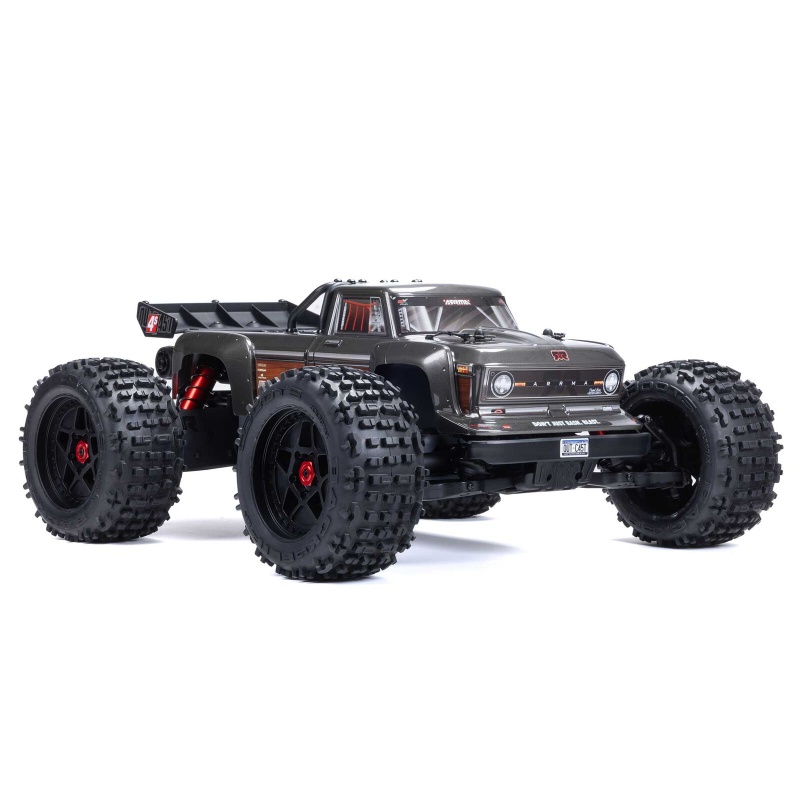

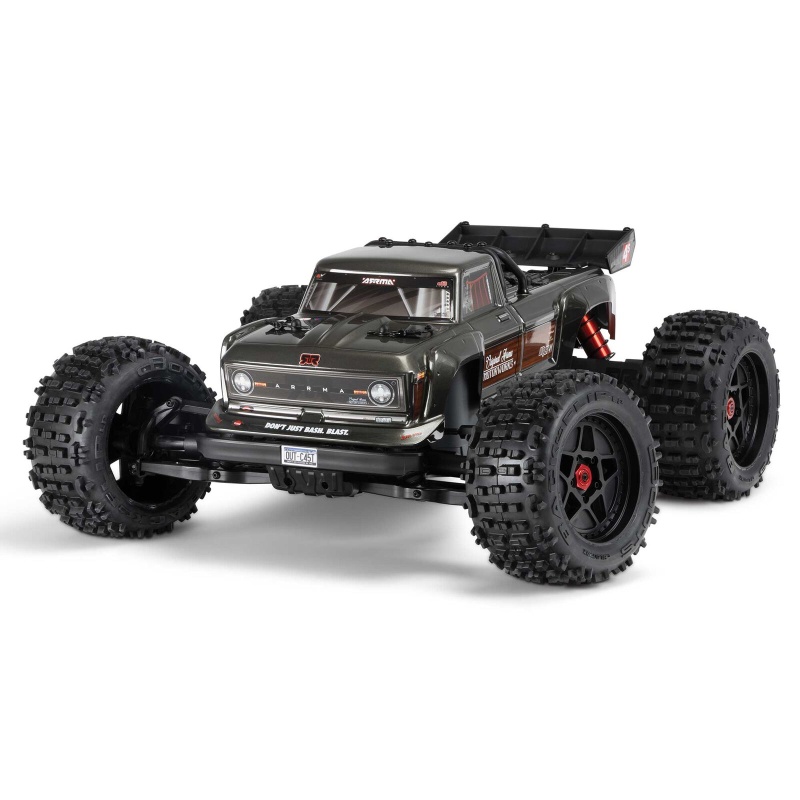

Made of high-quality rubber, the vented dBoots BACK-FLIP LP tires have an aggressive tread pattern that finds a solid grip on a wide range of surfaces. The vintage truck body has a tough, injection-molded rear wing and comes factory-finished in your choice of two fresh color schemes. Front and rear bumpers protect against impacts and a wheelie bar with rubber tires provides stunt potential.
Everything in the durable design contributes to confident control and responsive handling for whatever eye-popping stunts you can imagine. Fully ready-to-run, the ARRMA OUTCAST 4S BLX Stunt Truck comes with a 3-channel Spektrum SLT3 2.4GHz radio and dual protocol SR315 receiver. Just charge up and pop in your choice of recommended battery and you’re ready to start showing off powerful new stunts!
Product Specifications
Charger | Sold Separately |
Differential | 3 Gear Diffs |
Max Battery Dimensions | 156x51x48 mm |
Receiver | Included |
Shock Type | Aluminum body, coil-over springs |
Approximate Assembly Time | No assembly required |
Body | Painted, decalled and trimmed |
Brakes | Integral with ESC |
Pinion | 13T |
Scale | 1/10 |
Ball Bearings | Full set, rubber shielded |
Chassis | Molded composite |
Completion Level | Ready-To-Run |
Drivetrain | 4WD |
Drive Type | Forward/Brake/Reverse |
Product Height | 8.86" (225 mm) |
Wheel Hex Size | 17mm |
Spur Gear | 57T |
Suspension | Independent |
Product Length | 20.28" (515 mm) |
Internal Gear Ratio | 2.85 |
Motor Size | 3668-2400Kv |
Battery | Sold Separately |
Water-Resistant | Yes |
Vehicle Type | Monster Truck |
Product Weight | 9.17lbs (4.17kg) |
Front Track | 17.72" (450mm) |
Product Width | 17.72" (450 mm) |
Radio | Included |
Technology | Smart |
Final Drive Ratio | 12.48 |
Motor Type | Brushless - Sensorless |
Rear Track | 17.72" (450mm) |
Speed Control | Included |
Wheelbase | 12.32" (313 mm) |
Power Type | Electric |
Gear Pitch | 0.8m |
Servos | Included |
In The Box
- (1) ARRMA® OUTCAST™ 4X4 4S BLX 1/10 Scale 4WD Electric Stunt Truck RTR
- (1) Spektrum™ Firma™ 120A Smart V2 Waterproof ESC
- (1) Spektrum™ Firma™ 3668 2400Kv Brushless Motor
- (1) Spektrum™ 2.4GHz SLT3™ 3-Channel Transmitter
- (1) Spektrum™ SR315 Dual Protocol Receiver
- (1) Spektrum™ SPMS662 Metal-Geared Digital Servo
- (1) 25T Spline Servo Saver
- (1) Product Manual
Needed to Complete
- (1) 3S or 4S LiPo Battery with EC5™ or IC5® connector
- (1) Compatible Battery Charger
- (4) AA batteries for Transmitter
- *Maximum battery dimensions 6.14x2.01x1.89 in (156x51x48mm). Minimum battery specs 5000mAh 35C.
