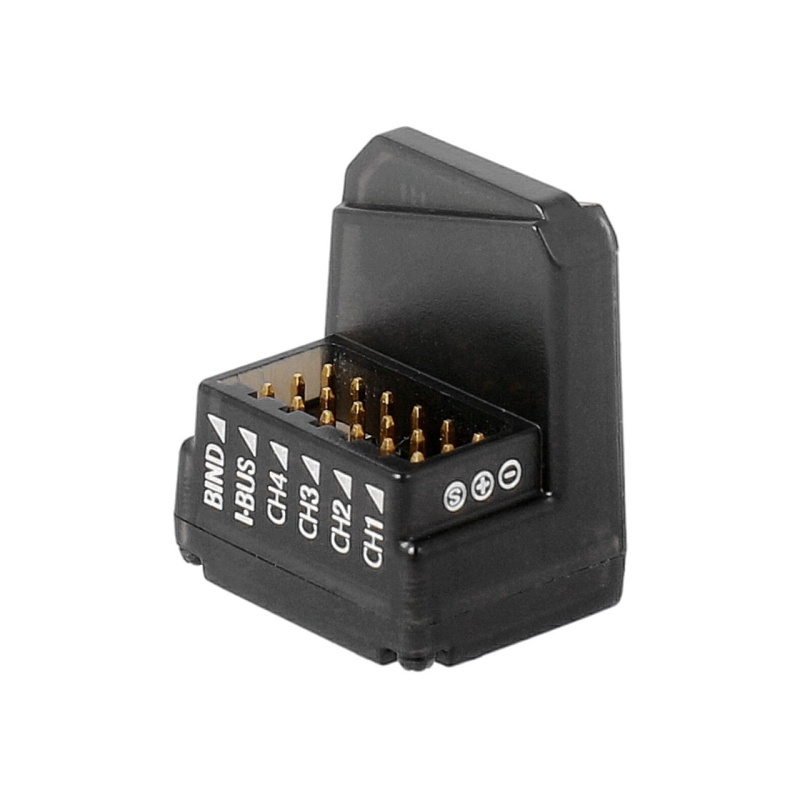

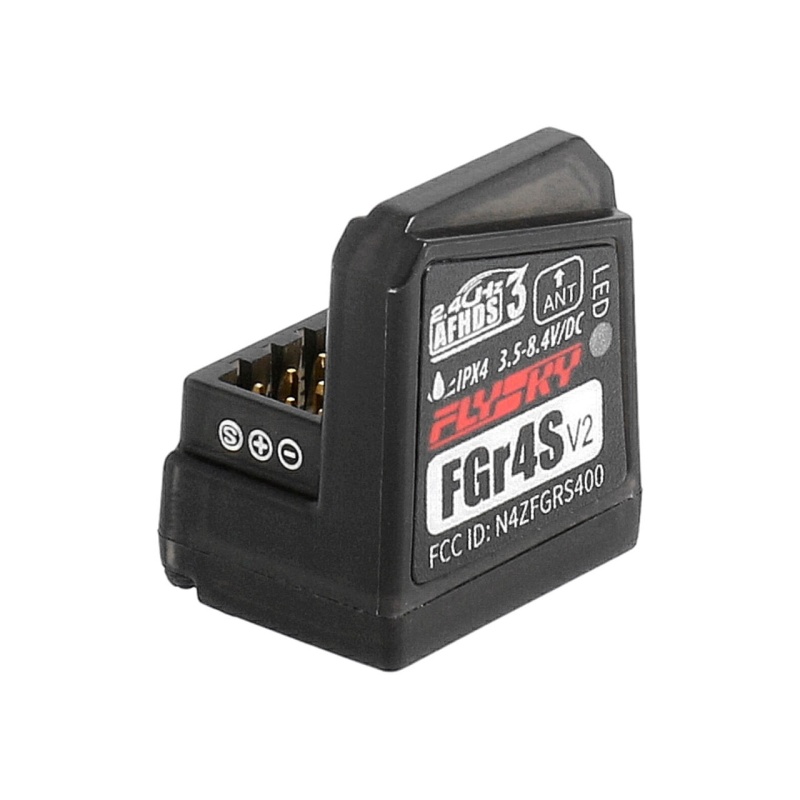

The FGr4S receiver is the ideal support when using a Flysky remote control. The receiver makes use of a technology used by several Flysky transmitters - the automatic frequency hopping digital system (short: AFHDS3). With a bidirectional transmission system via the antenna, this receiver is specially designed for the installation and output of PWM/PPM/i-BUS and S.BUS signals. All AFHDS3-capable transmitters are supported.
Technical Specifications
PWM-Channels: | 4 |
RF: | 2.4GHz |
Protocol: | AFHDS 3 |
Antennas: | Single |
Input Voltage: | 3.5-8.4V |
Range: | >200m |
Output: | PWM/PPM/i-BUS/S.BUS |
RSSI: | Supported |
Temperature: | -10°C to +60°C |
Max. Humidity: | 20%-95% |
Update: | Yes, online |
Dimensions: | 25.5x22x17.3mm |
Weight: | 5.1g |
Suitable for: | Cars, Boats, etc. |
Compatible Transmitter: | all AFHDS3-Transmitter |
