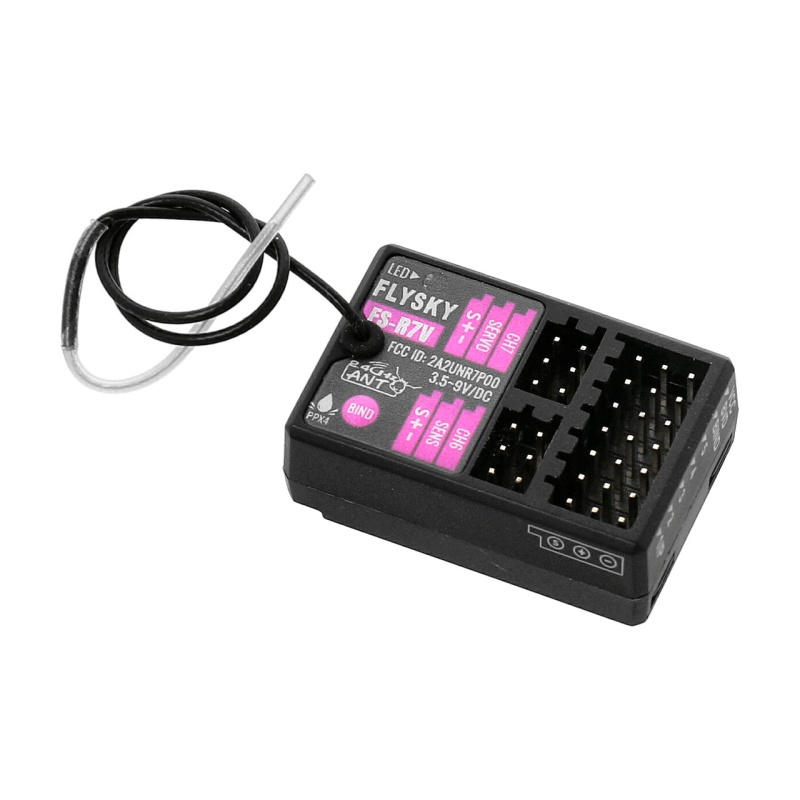

The R7V receiver is the ideal partner when using a Flysky remote control and with its built-in gyroscope it is specially designed for the installation and output of PWM signals. Therefore it is supported by all ANT-capable transmitters and is waterproof in terms of the PPX4 regulation.
Technical Specifications
PWM-Channels: | 7 |
RF: | 2.4GHz ISM |
Protocol: | ANT |
Antennas: | Single |
Input Voltage: | 3.5-9V |
Max power: | <20dBm (e.i.r.p.) (EU) |
Output: | PWM |
Resolution: | 4096 |
Temperature: | -10°C to +60°C |
Max. Humidity: | 20%-95% |
Update: | Yes, online |
Dimensions: | 35.2x23.3x13.3mm |
Weight: | 8g |
Compatible Transmitter: | all ANT-Transmitter |
