Futaba R304SB-E S.Bus2 4-Channel T-FHSS Telemetry Receiver

Notes from the Tech Department

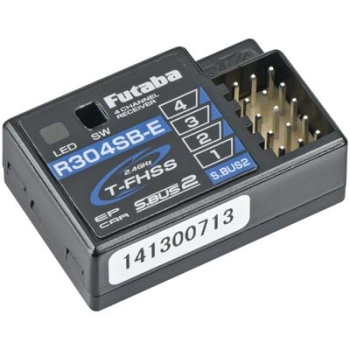

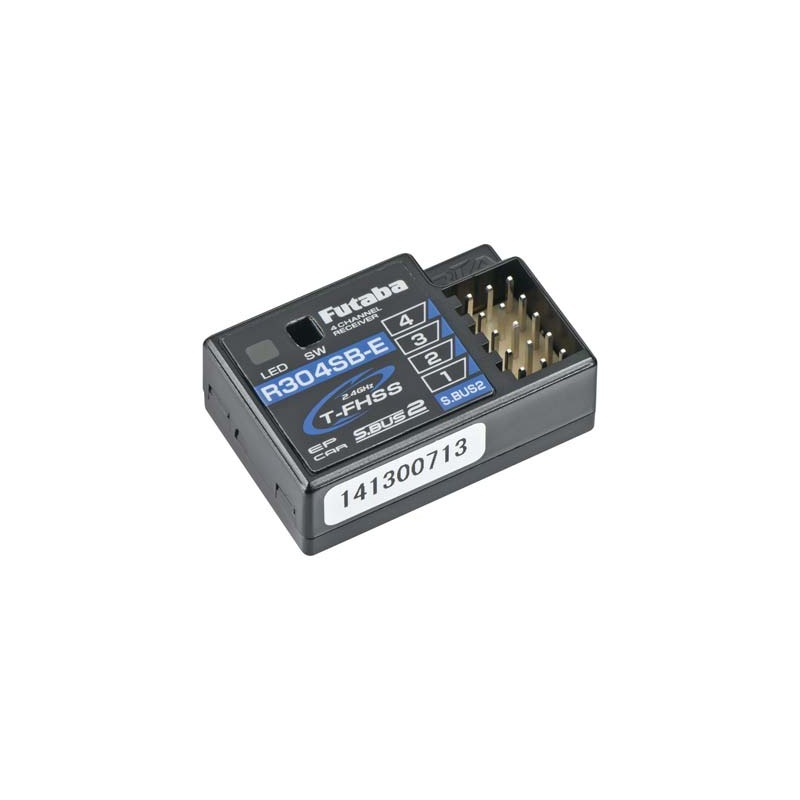

This is the Futaba R304SBE 2.4GHz T-FHSS S.BUS2 4-channel Telemetry Receiver.

FEATURES: Only for use with electric powered RC vehicles, do not use with glow or gasoline powered vehicles Telemetry data can be displayed and checked at the transmitter by connecting the telemetry sensor to the S.BUS 2 port of this receiver Built-in antenna Normal and high-speed mode, normal accepts any type of servos* or the peripheral, high speed mode accepts digital servos, including BLS series and most peripheral equipment such as brushless ESC's One year limited warranty through Hobby Services beginning at date of purchase

INCLUDES: Futaba R304SBE 2.4GHz T-FHSS S.BUS2 4-ch Telemetry Receiver with Instructions

REQUIRES: Digital servos of modeler's choice

SPECS: System: T-FHSS system at Normal/High speed mode (auto detection) Receiving Range: 230' (70m) under best conditions Power Requirement Rated Voltage: 4.8-7.4V Usable Voltage: 3.5-8.4V Size: 1.38 x 0.91 x 0.33" (35.1 x 23.2 x 12.5mm) Weight: 0.23oz (6.7g) F/S and Battery F/S Function: Sets according to transmitter used Battery F/S Voltage: Arbitrarily set with transmitter

COMMENTS: Not compatible with the Futaba S-FHSS, FHSS, FASSTest or FASST transmitters. *For best results do not used analog servos with this receiver.
