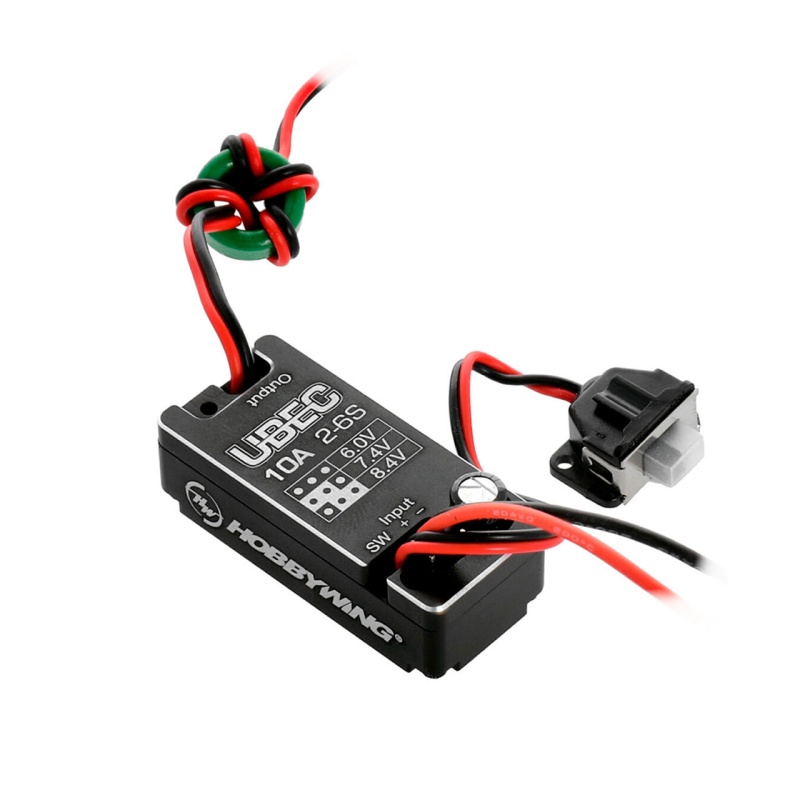

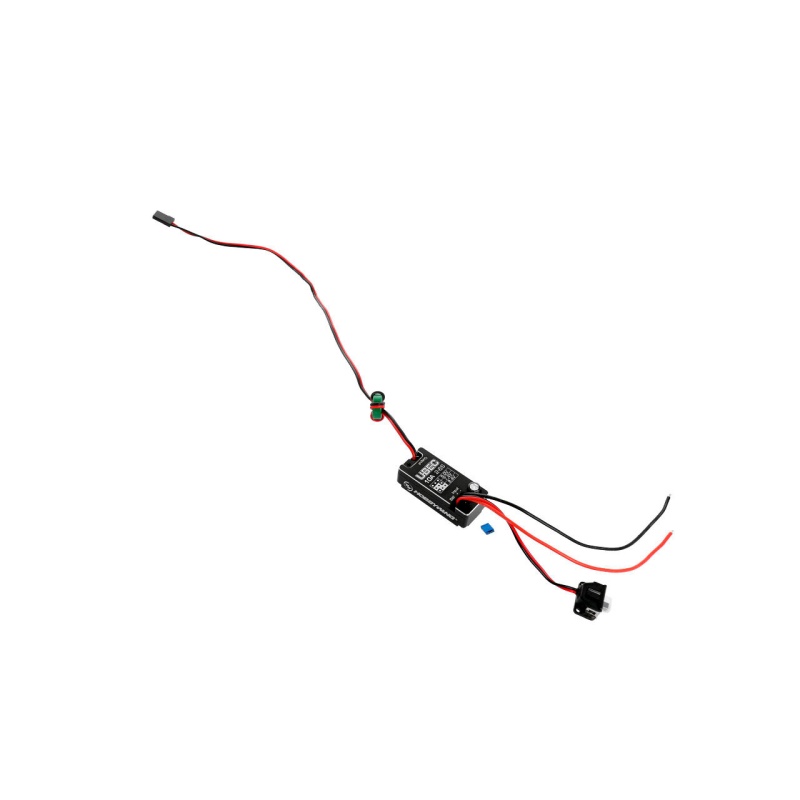

The UBEC uses a high-performance DC-DC switching module that draws its voltage from 2-6S LiPos. The module regulates the voltage down to a previously defined value that is required by the receiver or other electronic devices. This is extremely stable and the output current is permanently up to 10A or briefly at 15A.
Because this UBEC is not only powerful, but also waterproof and dustproof, it is particularly suitable for the use in rock crawlers.
Features:
- Highly efficient DC-DC regulator chip for a transmission efficiency of over 90%.
- An all-metal housing design helps conduct heat and reduces electromagnetic interference.
- Adjustable UBEC output voltage (6.0V / 7.4V / 8.4V) applicable for servos with different voltages.
- The continuous current of UBEC is up to 10A and max. 15A and can thus be used for various electrical devices (e.g. car lights, winches, windshield wipers, etc.).
- Excellent waterproof and dustproof design with IP67 rating.
- Multiple protection functions: overcurrent protection, output short circuit protection, overheating protection, safe and reliable.
- External switch enables the UBEC to be switched on / off easily.
- LED display to show the status of the UBEC.
Technical Specifications:
Input Voltage: | 2-6S LiPo |
Output Voltage: | 6.0V / 7.4V / 8.4V (adjustable) |
Current cont./peak: | 10A / 15A |
Dimensions: | 45x20x16.2mm |
Weight: | 34g |
