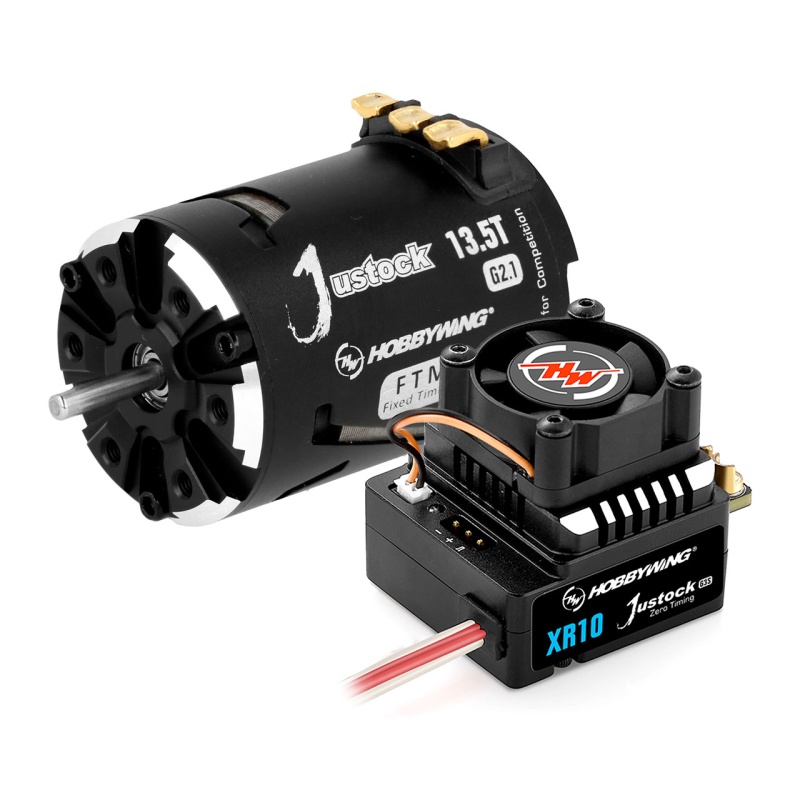

A combination of the JUSTOCK 3650SD G2.1 motor and the XR10 JUSTOCK G3S ESC, this combo is perfectly matched for the ambitious stock or races. The XR10 JUSTOCK G3S ESC was specially developed for races and training sessions. The expanded "RPM Limit" programming option ensures that the limit can be adjusted depending on the racing requirements - up to 88000 RPM as well as unlimited. In addition, there is the well-known fixed 0-Timing, which is often required in races. So get ready for a fair and successful race. Thanks to new programming options compared to its predecessor, it is now also possible to determine the direction of rotation of the motor as well as to set the BEC voltage to a certain value.
Features (ESC)
- Even more available parameters than the normal Justock G3 controller (smart fan, freewheeling, initial throttle force)
- Refined parameter options
- RPM limit of up to 88000RPM instead of only 25000RPM or 33500RPM
- Perfect for competition thanks to RPM limits and 0 timing
- Direction of motor rotation free choosable (CW or CCW)
- Adjustable BEC voltage (6V or 7,4V)
- Robust aluminum housing for ideal heat dissipation
- Built-in capacitors as a space-saving solution compared to external capacitors
- Various protective functions against polarity reversal, overheating, Fail-safe and more
- Firmware upgrades possible to always be up to date
Features (Motor)
- Heat-resistant magnet and double insulated windings
- Precision bearings
- Cool look and good heat-dissipation
- Linear and smooth control
- Re-buildable design
Technical Specifications
ESC | |
Type: | Brushless, Sensored |
Power (cont./peak): | 60A / 380A |
Input Voltage: | 2S LiPo |
BEC: | 6V / 7.4V bei 4A |
Motor Types: | Brushless Motors (sensored / sensorless) |
Motor Limit: | >=10.5T 3650 Motor |
Fan: | Yes, Input via BEC |
Programming: | LCD Programming Box G2, LCD Programming Box Pro, OTA Module, separate Programming Port |
Dimensions: | 40.9x33.9x32.1mm |
Weight: | 75.4g |
Application: | 1/10, 1/12 On-Road and Off-Road Competition and Training (e.g. Touringcar, Buggy) |
Motor |
|
Type: | Brushless / Sensored |
Poles: | 2 |
kV Rating: | 3200KV |
Windings: | 13.5T |
LiPo Cells: | 2-3s |
No-Load Current: | 4.0A |
Outer Diameter: | 35.9mm |
Length: | 52.5mm |
Shaft Diameter: | 3.17mm |
Weight: | 175g |
Timing: | Fixed |
Application: | 1/10, 1/12 On-Road and Off-Road Stock (e.g. Touringcar, Buggy) |
In the box:
1x ESC
1x Motor
English manual
179,90 €
