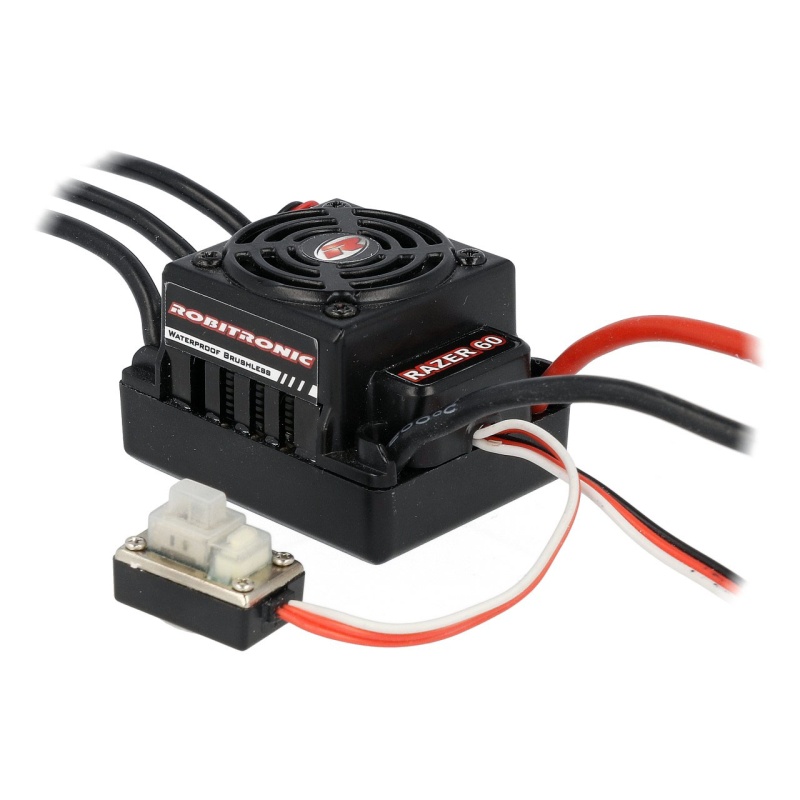

Whether 1/10 on-road or 1/10 off-road, the Razerten 60A is always the first choice when reliability, efficiency and durability are paramount. Diverse setting and programming options leave nothing to be desired.
All cables are already wired ready for connection to the controller, no soldering required.
Battery connection: T-plug,
Motor connection: 4mm sockets
Characteristics:
Fully waterproof and dustproof
ON / OFF switch with setup button
S-BEC with 6V and 3A peak current
Plug and play, battery and motor connector already soldered
Multiple protection devices: undervoltage shutdown, thermal protection and protection against signal loss.
Easy programming using the setup button
Separate programming port, easy connection of the LED program card (optional, sold separately)
Technical specifications:
Constant / peak current: 60A / 390A
Type: Sensorless
Motor Limit:
2s Onroad: 3650 engine,> = 5.5T
2s offroad: 3650 engine,> = 8.5T
3s Onroad: 3650 engine,> = 9T
3s offroad: 3650 engine,> = 13T
Internal resistance: 0.0012 ohm
LiPo / NiMH battery pack: 2-3s LiPo / 6-9 cells NiMH
S-BEC: 6V / 3A
Programming port: yes
Dimensions LxWxH: 48.5x38x32mm
Weight: 90g
Application: 1/10 on and off road
In the box:
1x controller fully wired with battery connector and motor connection
1x instructions (English, German)
