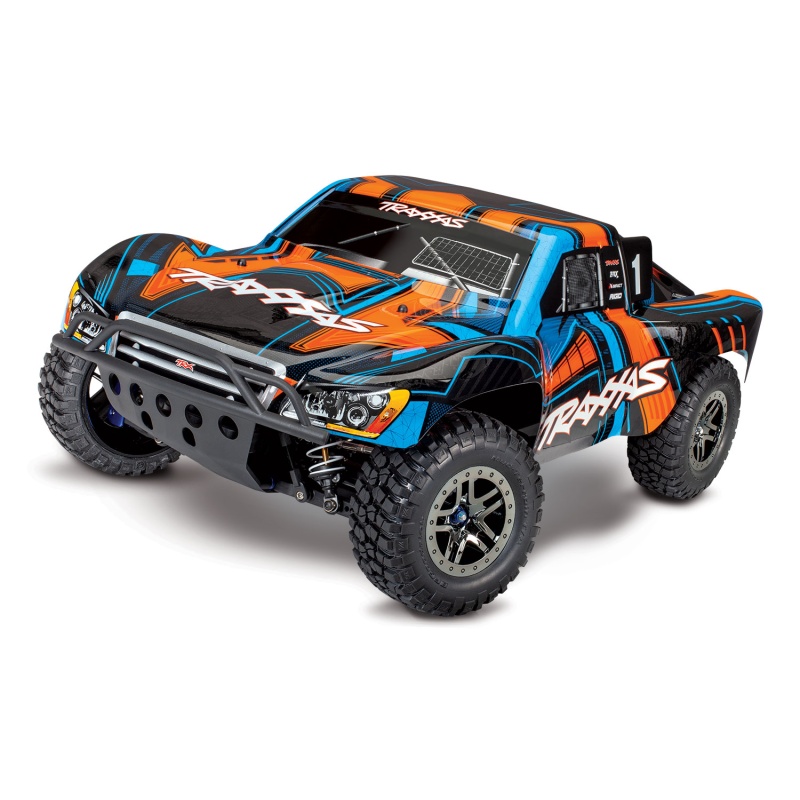

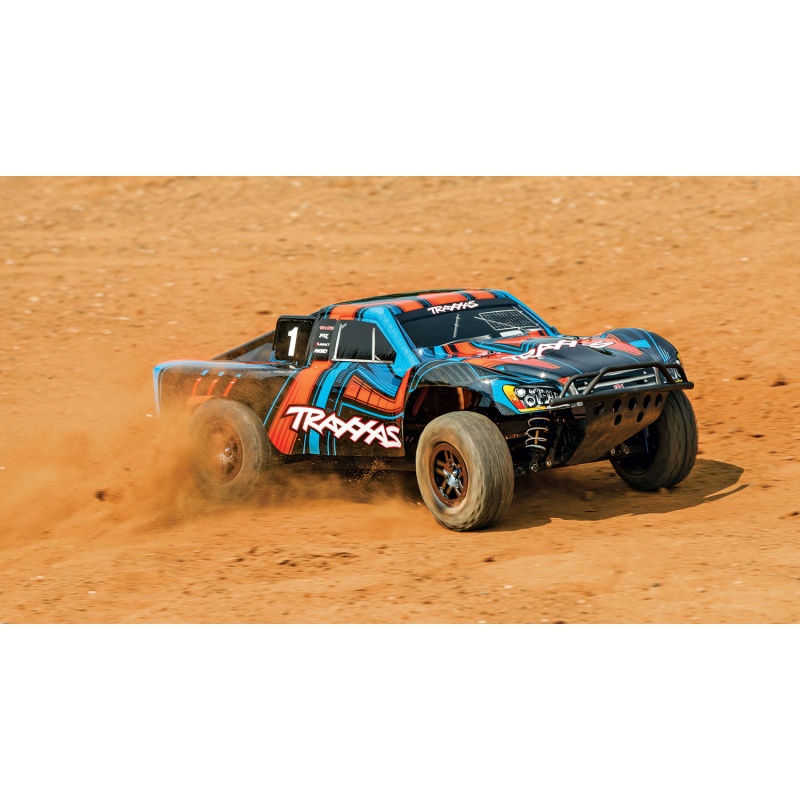

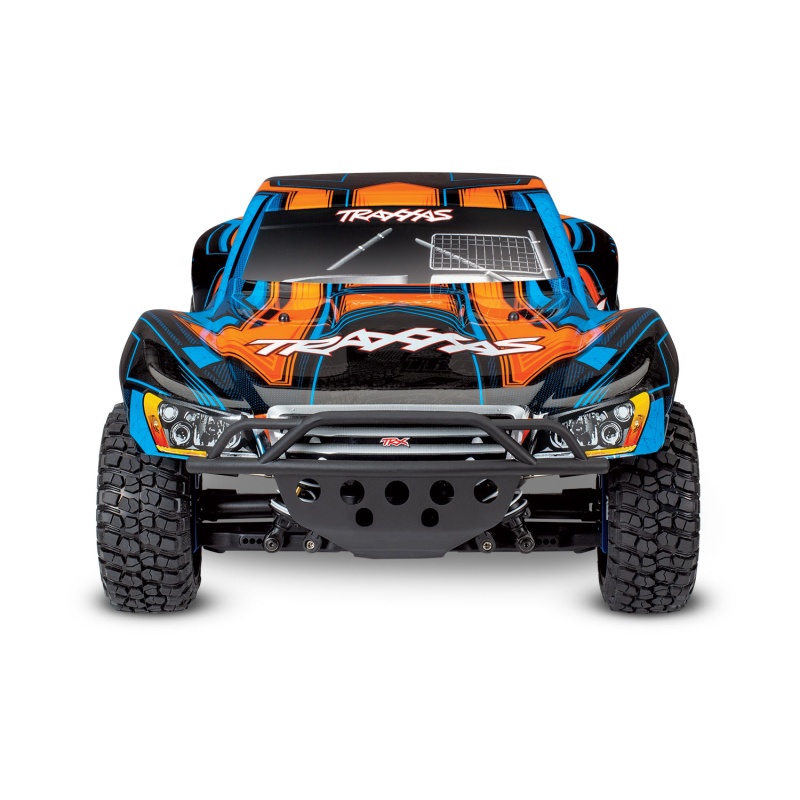

Traxxas Slash 4X4 Ultimate 1/10 SCT, Brushless (without battery and charger)

SKU: TRX68277-4ORNG
EAN: 0020334017291
Brand:
Unit: pc
In stock: Temporarily out of stock.
Price:
559,00 €
Qty.: - +
   - or -

PS! Battery and carger not included!

Now with clipless body mounting.

Slash 4X4 Ultimate Standard Features:

  • Traxxas Stability Management® System (TSM)
  • Powered by the Velineon® Brushless Power System
  • Slash 4X4 Ultimate reaches speeds in excess of 60mph!*
  • Traxxas High-Current Connector (patented) allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
  • Maxx® Cable 12-gauge wire
  • Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow
  • Velineon VXL-3sElectronic Speed Control
    • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
    • Sport Mode – Forward / Brake / Reverse
    • Race Mode – Forward / Brake
    • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
  • Velineon 3500Brushless Motor
    • Consistent, high-power output, run after run
    • Low-maintenance, unique Traxxas design
    • Efficient, high-speed ball bearings
    • Precision-balanced rotor
  • TQi 2.4GHz transmitter
    • Traxxas Link Wireless Module
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required
    • Factory-equipped with speed/RPM, temperature, and voltage telemetry sensors
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • TQi 2.4GHz 5-channel micro receiver (#6533) w/Traxxas Stability Management and integrated telemetry ports
  • Durable steel turnbuckles and captured rod ends

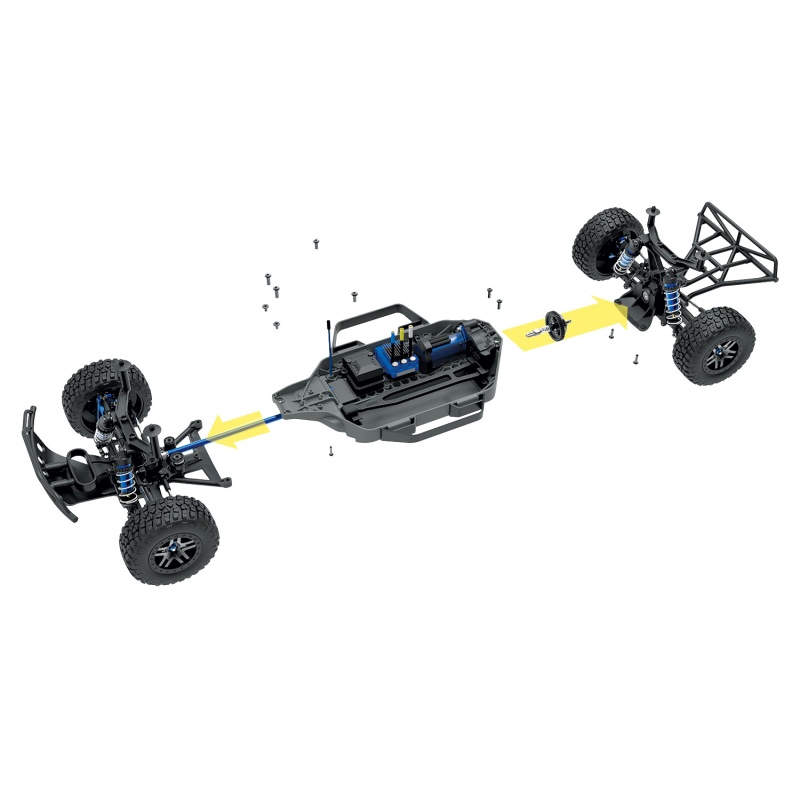

  • Single-screw motor access makes gear-mesh adjustments fast and easy and the motor can be removed in just seconds

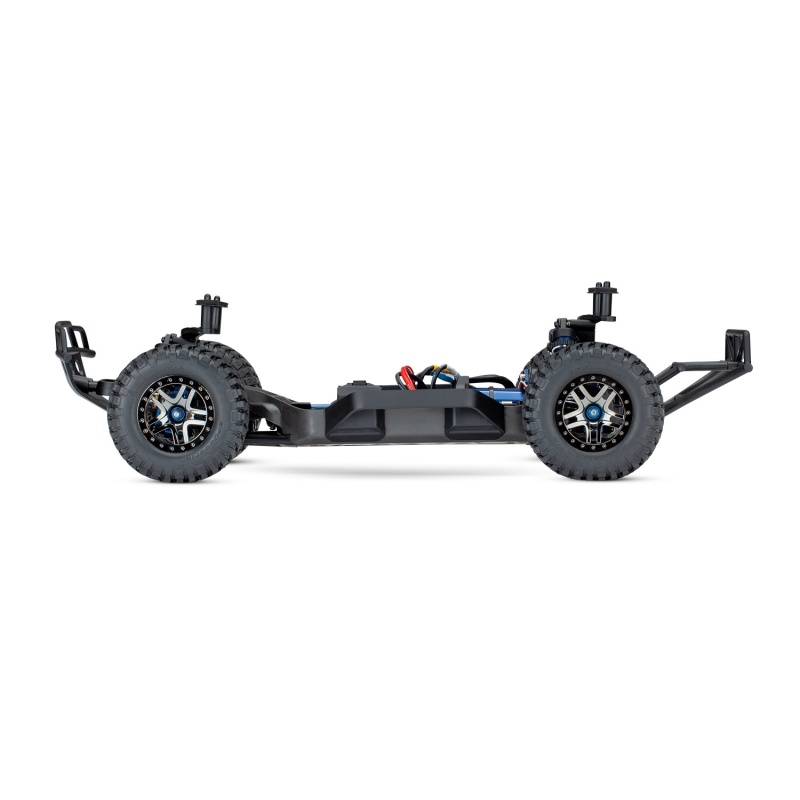

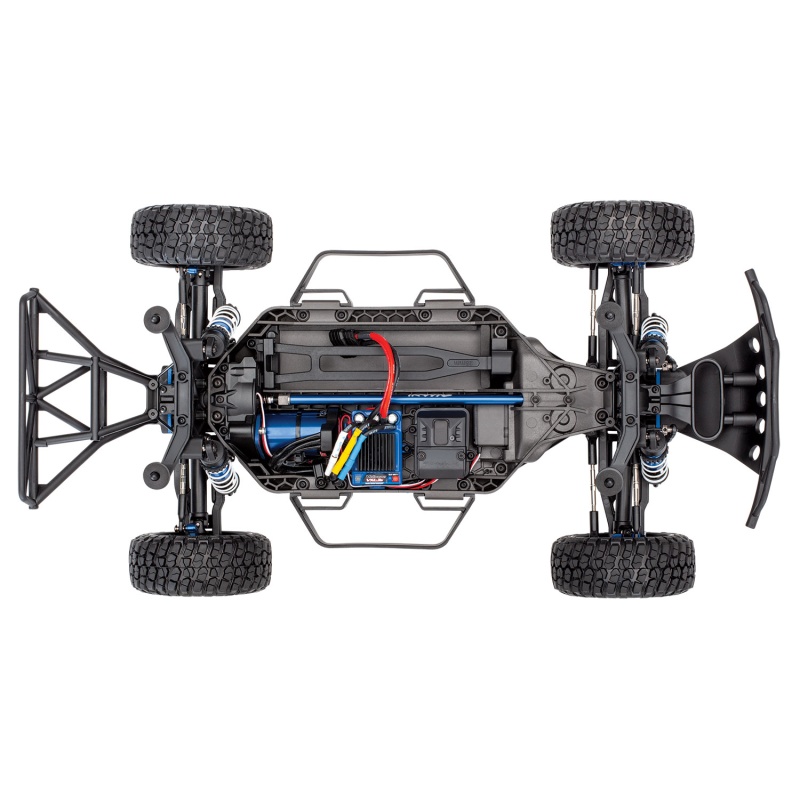

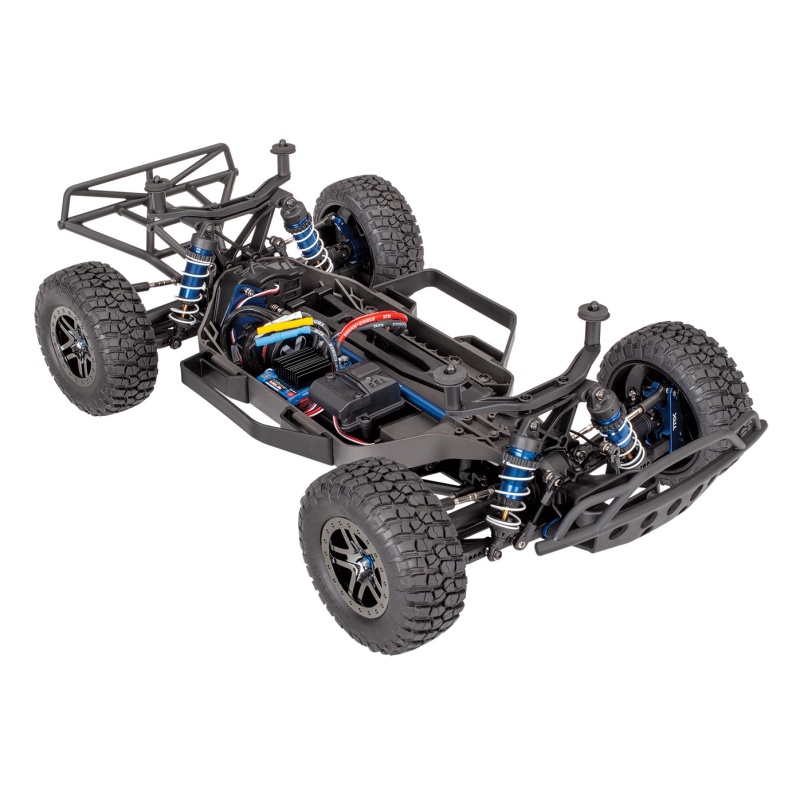

  • Performance-optimized dark charcoal gray low-CG chassis
  • Speed control and receiver are securely fastened to chassis
  • Integrated personal transponder mount
  • Versatile battery compartment easily adapts to multiple styles of batteries; 6 or 7-cell NiMH battery packs and various configurations of Lithium Polymer packs are no problem for Slash 4X4 Ultimate
  • Digital high-speed #2075R waterproof metal gear servo
  • Waterproof, O-ring sealed receiver box
  • Sealed, silicone-filled differentials
  • Torque-Control™ slipper clutch system

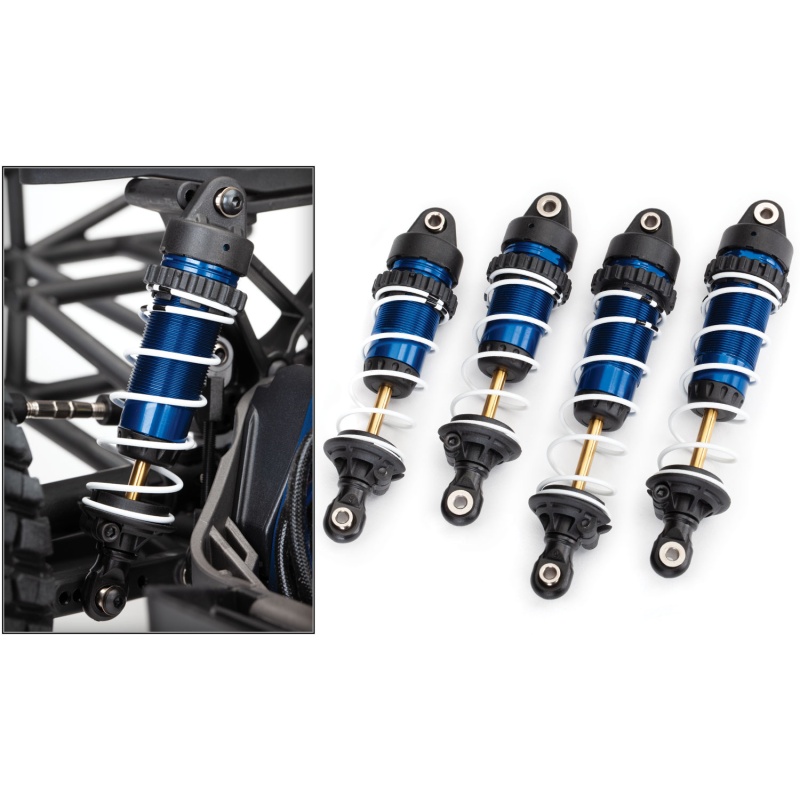

  • High-volume GTR shocks with adjustable-collar blue PTFE-coated aluminum bodies and TiN coated shafts

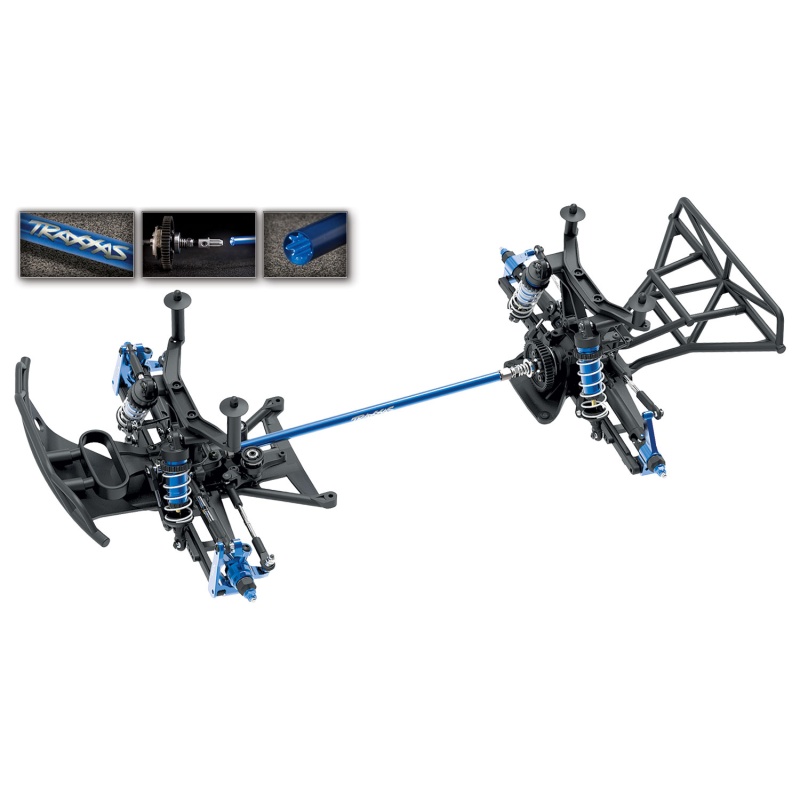

  • Upgraded Extreme-Duty driveshafts
  • Heavy-duty suspension arms
  • White powder coated shock springs feature a responsive spring rate
  • Telescoping universal-joint driveshafts
  • Rubber-sealed ball bearings
  • Pre-glued soft-compound S1 rubber tires for realistic performance and exceptional grip

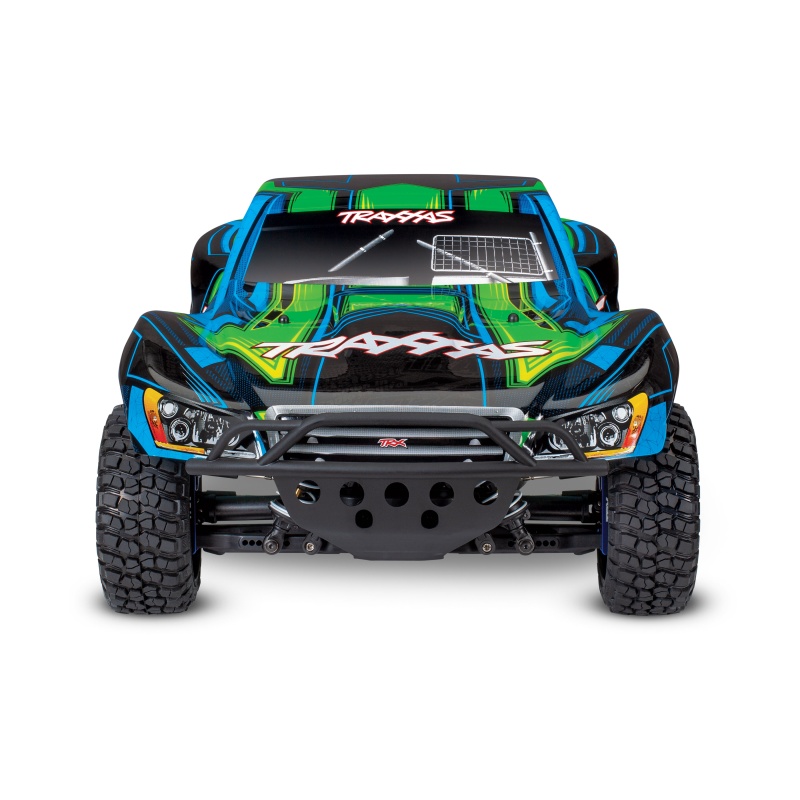

  • ProGraphix® painted body
  • Full line of genuine Traxxas accessories available
  • Slash 4X4 Ultimate is backed by unparalleled Traxxas support and parts availability
Specs
SLASH 4X4 ULTIMATE (#68077-4) SPECS
Length:   22.36 Inches (568mm)
Front Track:   11.65 Inches (296mm)
Rear Track:   11.65 Inches (296mm)
Center Ground Clearance:   1.85 Inches (47mm)
Weight:   80.4oz (2.28kg)
Height (overall):   7.60 Inches (193mm)
Wheelbase:   12.75 Inches (324mm)
Shocks:   GTR threaded aluminum-body with titanium-nitride shafts
Shock Length:   GTR Long (front), XX Long (rear)
Tires:   2.2/3.0", S1 compound, pre-glued with foam inserts
Tire Diameter:   4.31 Inches (109.5mm) (front and rear)
Wheels (front/rear):   2.2/3.0" Split-Spoke, Black Chrome
Wheel Diameter:   2.2 Inches (56mm) Outer
3.0 Inches (76mm) Inner
Speed Control Type:   VXL-3s™ Electronic Speed Control
Motor (electric):   Velineon® 3500 Brushless
Overall Drive Ratio:   11.82 (stock, out-of-box)
Differential Type:   Hardened steel bevel, sealed, limited slip
Gear Pitch:   32
Chassis Structure/Material:   Molded tub / nylon composite
Drive System:   Shaft-driven, direct drive 4WD
Steering:   Dual-bellcrank with integrated servo saver
Radio System:   TQi 2.4 GHz radio system with Traxxas Stability Management®
Body:   ProGraphix® pre-painted
Top Speed:   60+mph*
Battery Tray Dimensions:**   165mm x 49.5mm x 23mm, 25mm
Required Items:   Traxxas battery pack, Traxxas iD charger, 4 "AA" batteries (for transmitter)



SLASH 4X4 ULTIMATE SPEED & SKILL LEVEL CHART
Speed: 35+mph 40+mph 40+mph 45+mph 60+mph
Pinion/Spur: 13/54* 18/54** 19/54 13/54* 19/54
Battery: 7-Cell NiMH 7-Cell NiMH 2S LiPo 3S LiPo 3S LiPo
Nominal Voltage: 8.4V 8.4V 7.4V 11.1V 11.1V
mAh: 4000+ mAh 4000+ mAh 4000+ mAh 5000+ mAh 5000+ mAh
Skill Level: 1 2 4 4 5



VXL-3s WATERPROOF ESC SPECIFICATIONS
Input Voltage:   NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size:   39mmW x 55mmD x 33mmH
Weight:   90 grams
Motor Limit (Brushless):   No motor limit
On Resistance Forward:   0.00075 Ohms
On Resistance Reverse:   0.00075 Ohms
BEC Voltage:   6.0 V
BEC Current:   2.5A
Power Wire:   12-Gauge Maxx® Cable
Input Harness Wire:   26 Gauge / 100mm
Low Voltage Detection:   2-Stage indicators, switchable (on or off)
Thermal Protection:   2-Stage thermal shutdown
Profile selection:   Sport Mode:
    100% FWD, 100% BRAKES, 100% REV
Race Mode:
    100% FWD, 100% BRAKES, NO REV
Training Mode:*
    50% FWD, 100% BRAKES, 50% REV
Single-Button Setup:   Yes, Traxxas EZ-Set®
Battery Input Connector :   Traxxas High-Current Connector
Motor Types :   Brushless
Ports:   RX Input, auxiliary fan
­

MODEL 68277-4: Fully assembled, Ready-To-Race® with Traxxas Stability Management®, 2.4GHz radio system with Traxxas Link™ Wireless Module, Velineon® Brushless Power System,
and ProGraphix painted body.
