TRAXXAS TRX-4 1979er Ford Bronco Red/Black 1/10 Crawler 2.4GHz, clipless (w/o battery&charger)

SKU: TRX82246-4-RED
EAN: 020334019844
Brand:

Unit: Set
In stock: Temporarily out of stock.

Price:

569,00 €

Video

Description

Chassis Spec

Length:	20.57 inches (523mm)
Front Track:	9.78 inches (249mm)
Rear Track:	9.78 inches (249mm)
Ground Clearance:	3.14 inches (80mm)
Weight:	6.42lb (2.91kg)
Height:	10.47 inches (266mm)
Wheelbase:	12.28 inches (312mm)
Approach Angle:	63.82°
Departure Angle:	43.22°
Breakover Angle:	58.93°
Front Shock Length:	3.54 inches (90mm)
Rear Shock Length:	3.54 inches (90mm)
Front Wheels:	1.9 x 1.02 inches (49 x 26mm)
Rear Wheels:	1.9 x 1.02 inches (49 x 26mm)
Front Tires:	4.64 x 1.89 inches (118 x 48mm)
Rear Tires:	4.64 x 1.89 inches (118 x 48mm)

Hex Size:	12mm
Speed Control:	XL-5 HV
Motor (electric):	21T Reverse Rotation
Transmission:	2-speed Hi-Lo, Remote Shifting
Gear Pitch:	32P
Differential Type:	4 Gear, Remote Locking
Chassis Structure / Material:	Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type:	Electronic “Hill Hold”
Drive System:	Shaft Driven 4WD
Steering:	Chassis Mounted Servo
Servo:	2075X Metal Gear
Transmitter:	TQi^™ 2.4 GHz 4-Channel Transmitter
Receiver:	6533
Skill Level:	2
Battery Tray:	158.75 L x 47 W x 23/26mm H

Motor Spec

Type:	High-torque brushed motor
Size:	550
Weight:	390g (13.76oz)
Length:	3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
Turns:	21T reverse rotation
Voltage:	16.8V

ESC Spec

Input Voltage:	6–7 Cells NiMH, 2–3s LiPo
Case Size:	1.23” W x 2.18” D x 1.04” H
Weight:	2.6oz (74g)
Motor Limit:	21-turns (550 size)
On Resistance Forward:	0.004 Ohms
On Resistance Reverse:	0.004 Ohms
Peak Current - Forward:	100A
Peak Current - Reverse:	100A
Braking Current:	60A
Continuous Current:	18A
BEC Voltage:	6.0 VDC
BEC Current:	1A
Power Wire:	14 Gauge / 5”
Input Harness Wire:	26 Gauge / 14.5”

Transistor Type:	MOSFET
PWM Frequency:	1700Hz
Low Voltage Detection (LVD):	2-Stage indicators, switchable (on or off)
Thermal Protection:	Thermal Shutdown
Profile selection:	Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode:* 50% FWD, 100% brakes, 50% REV Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
Single-button setup:	Yes, Traxxas EZ-Set^®
* Patented

Features

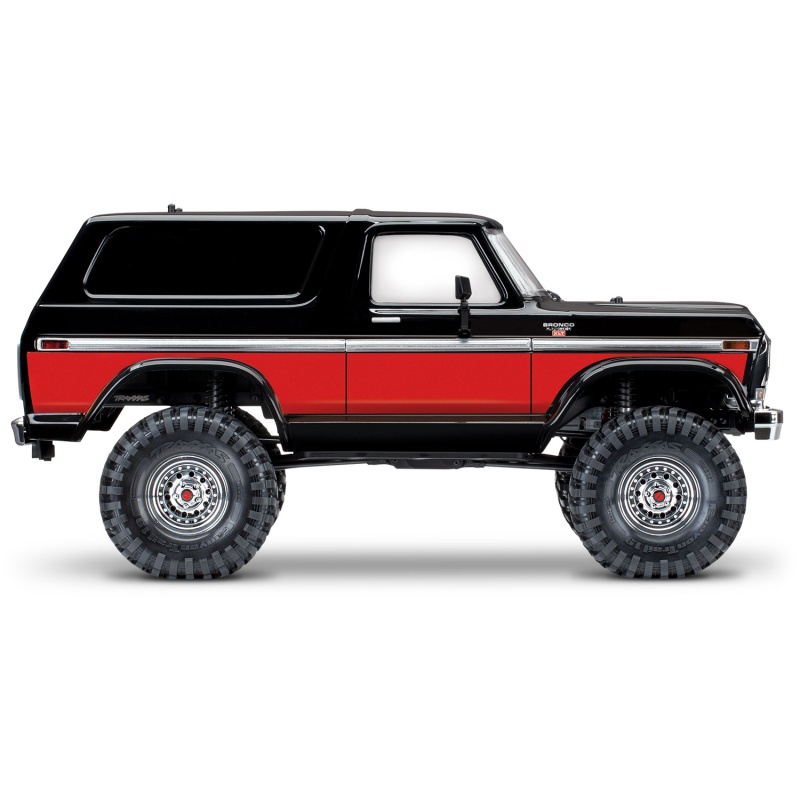

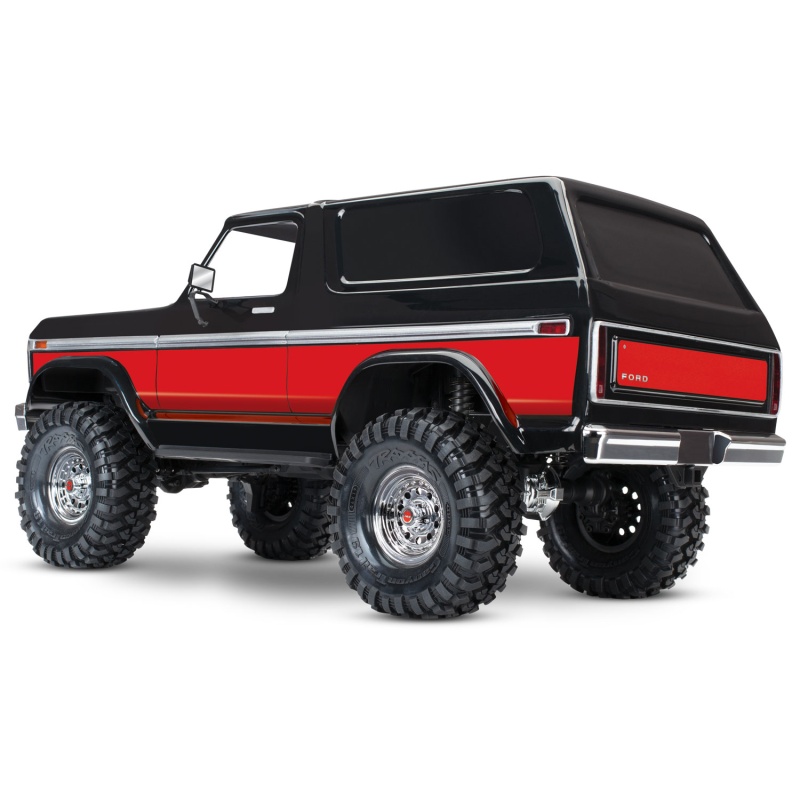

Officially Licensed Ford Bronco Body
- Scale details: grill, chrome bumpers, side mirrors, chrome side trim, and wipers
- Clear front and side windows
- Authentic decal sheet
- Full Nylon composite wheel wells and floor pans
- Additional scale accessories sold separately
Trail-tuned XL-5HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
  - Sport Mode — forward / brake / reverse
  - Race Mode — forward / brake / no reverse
  - Training Mode^™ — 50% forward / 100% brake / 50% reverse (patented)
  - Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  - Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set^® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
Motor
- Powerful Titan^™ 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts

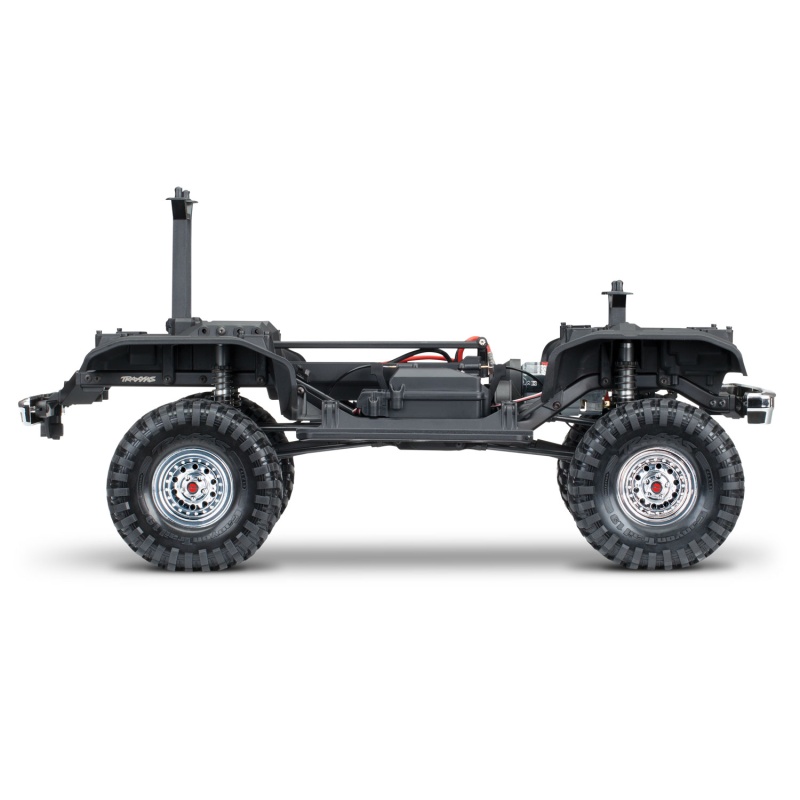

Rigid Steel Frame
- 1.5mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails

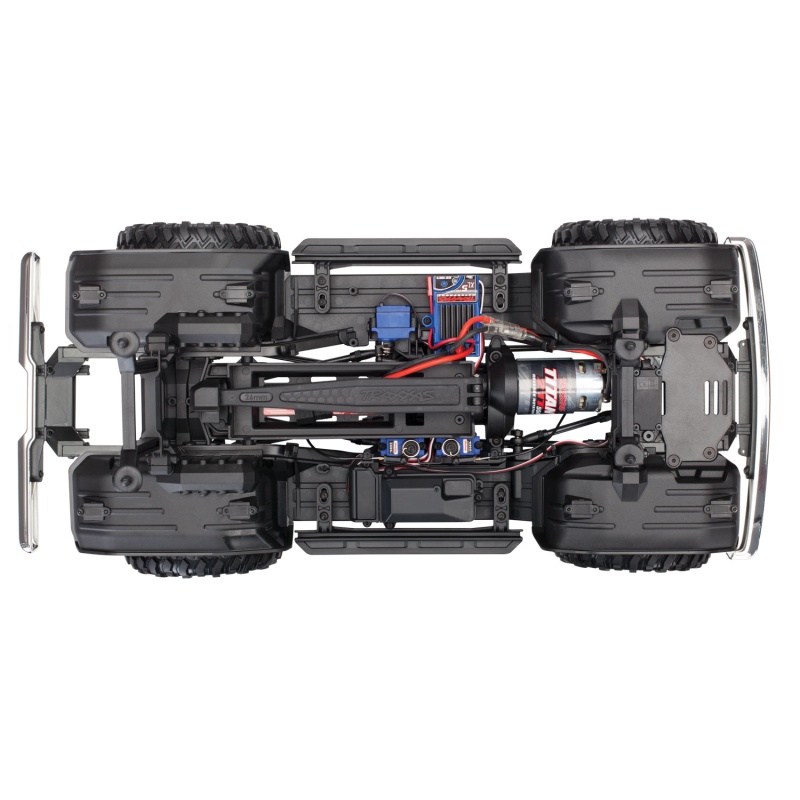

Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer

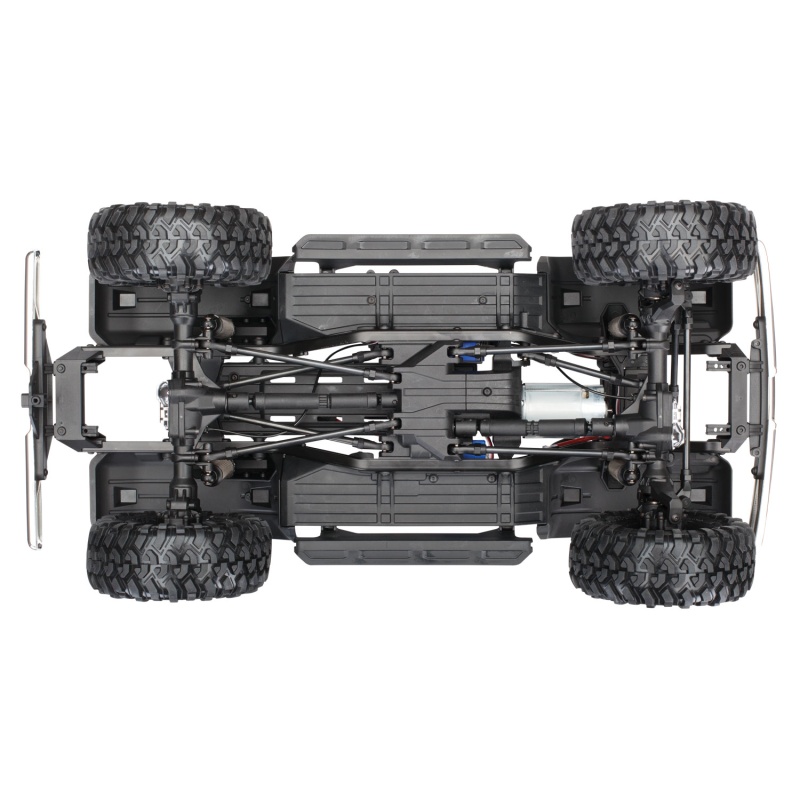

Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5mm diameter steel link rods with 4mm threaded ends
Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
Wheels and Tires
- Replica chrome wheels with hub inserts
- Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12mm steel hex
Transmitter
- TQi^™ 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- High 13ms frame rate and near-zero latency for responsive control
Patented O-ring sealed watertight receiver box keeps the micro receiver dry
Sealed Ball Bearings
Hex hardware with rust-resistant black oxide coating

What's included

MODEL 82046-4: TRX-4 Scale and Trail Crawler with Bronco Body: 1/10 Scale 4X4 Trail Truck, Fully-Assembled, Waterproof electronics, Ready-To-Drive^®, with TQi^™ 2.4GHz 4-channel Radio System, XL-5 HV Speed Control, Hi/Low Transmission, Remote Locking Differentials, and painted body.

What’s In The Box:

TRX-4, Ready-To-Race^® model
XL-5 HV waterproof electronic speed control
Titan^™ 21T reverse rotation motor
TQi^™ 2.4GHz radio system with cruise control
High quality maintenance tools

What You’ll Need (Not included):

Batteries
TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger
Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
