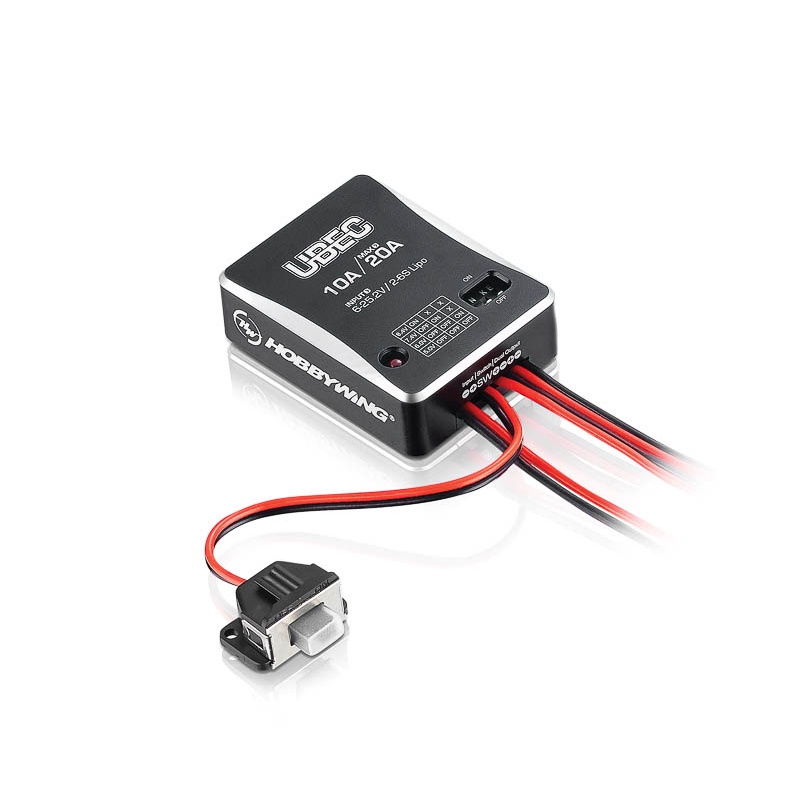

Hobbywing BEC 10A UBEC ESC 2-6s LiPo

The UBEC is an external switching mode DC-DC regulator; it draws the DC voltage from 2-6S Lipo battery, drops it to a voltage level that is suitable for receivers and other electronic devices, and keep providing the stable current output up to 10Amp.

As the UBEC has such a powerful output capability, so it is particularly applicable for large helicopters and fixed-wing aircrafts.

Features:

• It adopted the advanced DC-DC regulator chip with conversion efficiency exceeds 90%
• Options for the output voltage, applicable for all kinds of receivers/gyros/servos, etc.
• It owns BEC shoot-through protection, which prevent the input voltage from directly flowing to the output end and causing damages to receivers, servos and other electronic devices
• It featured other protections like over-current protection, short-circuit protection (at the output end) and thermal protection make the use more safe and reliable
• Two cables are connected in parallel at the output end of the UBEC, allow larger current to flow into the receiver.
• It has one status LED, which lights up when the output voltage is within the normal range
• The external switch can turn on/off the UBEC easily
• Exquisite aluminum case is helpful for heat dissipation & EMI (Electromagnetic Interference) reduction.

Technical Data

• Input Voltage: 6V-25.2V (2-6S LiPo)
• Output Voltage: 5.0V/6.0V/7.4V/8.4V
• Output Amperage: Continuous Current: 10A, Peak Current: 20A
• Dimension: 43.1 x 32.3 x 12.5mm (L x W x H)
• Weight: 36g
