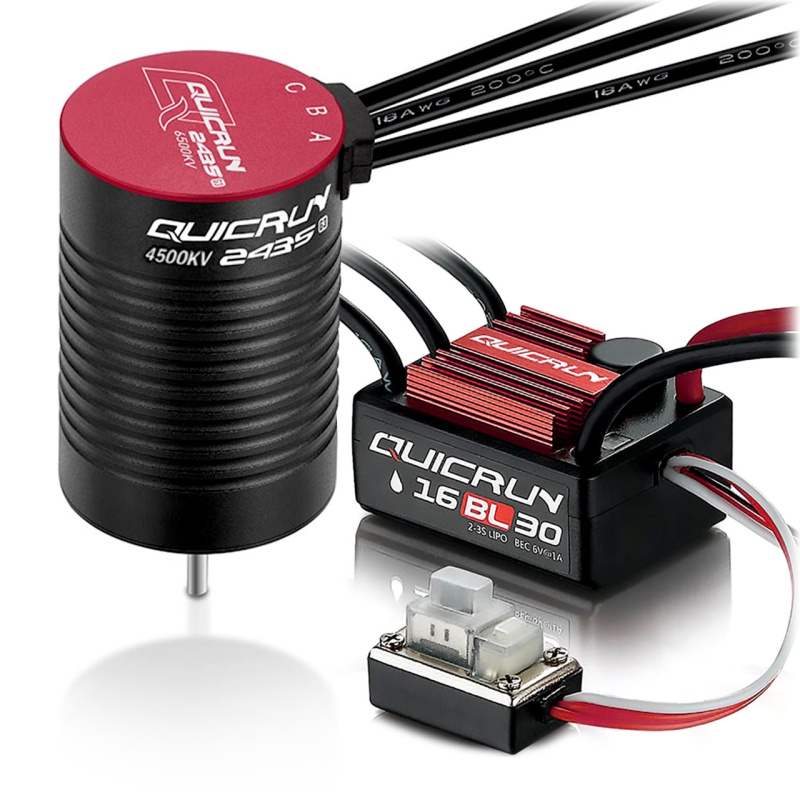

Hobbywing Combo WP16BL30 2435SL-4500KV-G3

Tootekood: HW38030000
EAN: 6938994420204
Kaubamärk:
Ühik: kmpl
Laoseis: 1
Hind:
59,90 €
Kogus: - +
   - või -

This Quicrun combo includes the all-time favorite WP16BL30 ESC as well as the 4500kV strong 2435 G3 series motors. This motor presents itself with a brand new 4-pole rotor, which has even more torque and from which the performance just shoots out. And compared to similar motors under the same load, the maximum output power is 60% higher and the efficiency is 5% higher, while the temperature has been reduced by almost 30 degrees. Due to the housing being sealed with a silicone rubber layer, the motor is particularly suitable for driving in more impassable environments in 1/16 or 1/18 scale.

Together with the WP16BL30 ESC, they form a cost-effective electronics team for beginners and advanced users alike.

Features (ESC):

  • Water-proof and dust-proof for all-weather races. (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
  • Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
  • 9 steps of acceleration (punch) adjustment from "soft" to "Very aggressive" to fit for different kinds of models, tires and tracks.
  • One button (the "SET" button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
  • Compatible with the optional portable digital LED Program Card, especially convenient for outdoor use.
  • Multiple protections:
    • Low voltage cut-off protection
    • Over-heat protection
    • Throttle signal loss protection
    • Motor lock-up protection.

Features (Motor):

  • 4-pole rotor design.
  • Even more torque.
  • Improvement in output power, efficiency and temperature development compared to the previous generation.
  • Very high durability due to the used materials (e.g.: 0.2mm thick silicon steel laminations, high-strength explosion-proof rotor, high-temperature resistant coil, first-line brand, etc.).
  • Plug'n'Play

Technical Specifications:

ESC
Type: Brushless, Sensorless
Current (cont./peak): 30A / 180A
Input Voltage: 2-3S LiPo, 4-9 cells NiMH
BEC: 6V @ 1A (Linear Mode)
Motor Types: Brushless Sensorless Motors
Motor Limit: For 2S LiPo or 6 cells NiMH
  • On-Road:
    2435 motos oder smaller with KV < 8000
  • Off-Road/Buggy/Monster:
    2435 motors or smaller with KV < 5000

For 3S LiPo or 9 cells NiMH

  • On-Road:
    2435 motors or smaller KV < 5500
  • Off-Road/Buggy/Monster:
    2435 motors or smaller with KV < 3500
Fan: No fan
Programming: - SET Button
- LED Program Box
Dimensions: 36 x 28 x 16mm
Weight: 38g
Application: 1/10, 1/12 On-Road and Off-Road Tournament and Training
(z.B. Touring cars, Buggy)
Motor
Type: Brushless / Sensorless
Poles: 4
kV Rating: 4500kV
Turns: -
Cells: 2S
No-Load Current: 2.1A
Outer Diameter: 24mm
Motor Length: 36mm
Shaft Diameter: 2mm
Shaft Length: 12mm
Weight: 61.2g
Timing: Fixed
Application: 1/16 & 1/18 On-Road & Off-Road

Delivery:

1x Quicrun WP16BL30 ESC
1x 2435SL G3 motor with 4500KV
