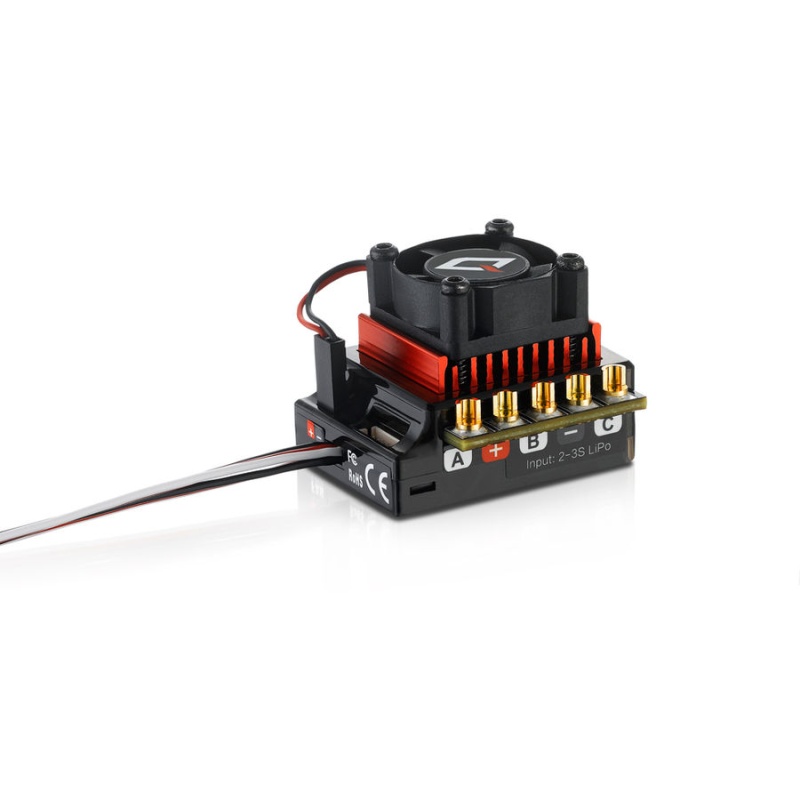

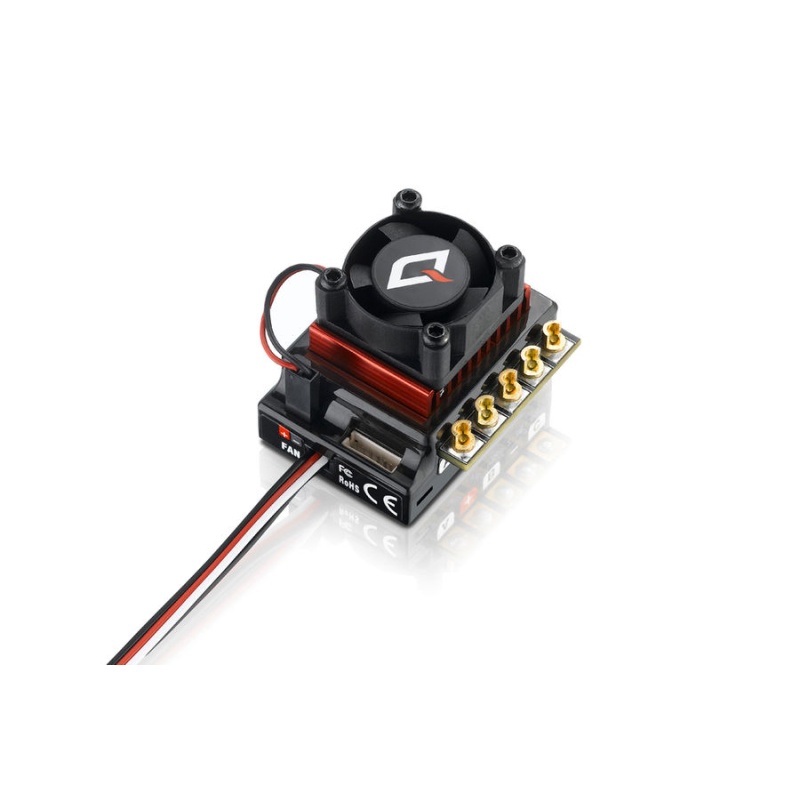

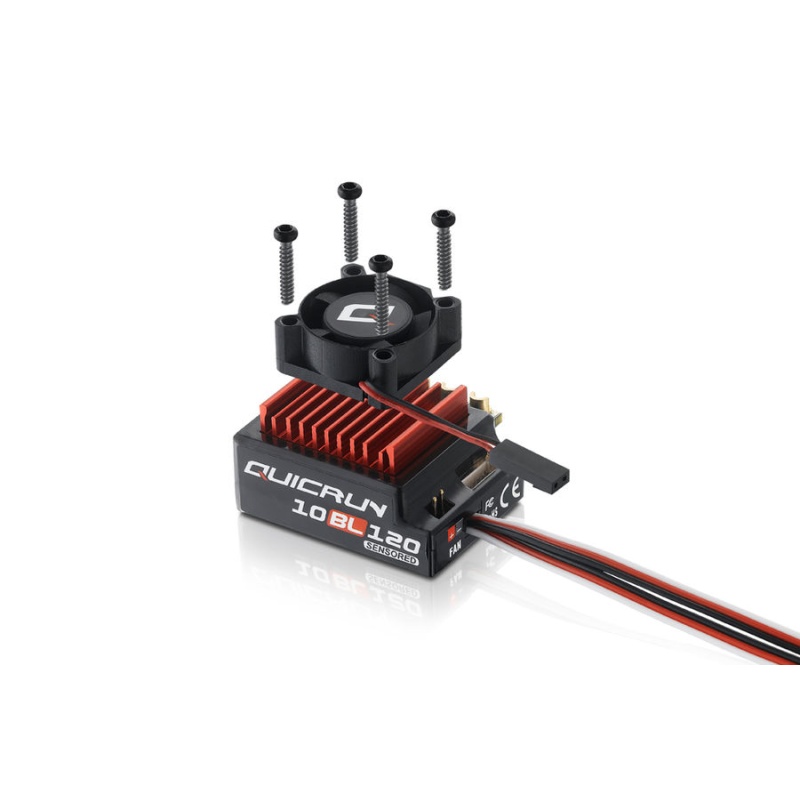

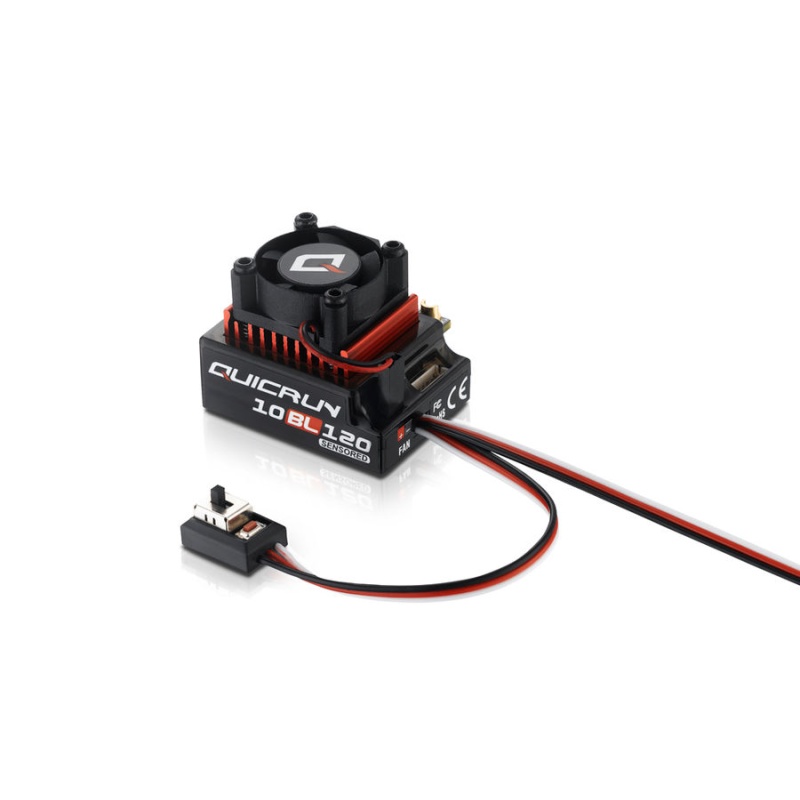

Hobbywing Quicrun 120A Sensoriga ESC

Easy Operation

This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Compact Design & SD/SL Dual Mode Supported

With the compact design, it’s applicable to various chassis. With the Dual (Sensored/Sensorless) Drive Mode, it’s compatible with different motors and brings racers two different control feel.

High Reliability & Durability

Reliable hardware combined with advanced software technology allows the QUICRUN 10BL60-SD to not only provide high power output but also overload protection of the ESC circuit.

Efficient Cooling System

Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRUN 10BL60-SD, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with high-performance cooling fan can keep your ESC as cool as possible.

Single-button Programming & Factory Reset

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Wide Applicability

This ESC is designed for practice and daily training of1/10th, 1/12th scale touring cars, buggies, and F1.

Spec:
Scale: 1:10
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: NO

Cont./Peak Current: 120A/760A
Input: 2-3S Lipo/5-9 Cell NiMH
BEC Output: Linear Mode:6V@3A
Size: 44.5x32x23/34mm (without/ with Fan)
Weight: 105g

Applications: /10thTouring Cars/Buggies/Drift Cars/F1
KV Ratings:

2SLipo: 1/10thTouring Cars≥4.5T；1/10thBuggies≥5.5T
3SLipo: 1/10thTouring Cars≥10.5T；1/10thBuggies≥13.5T
