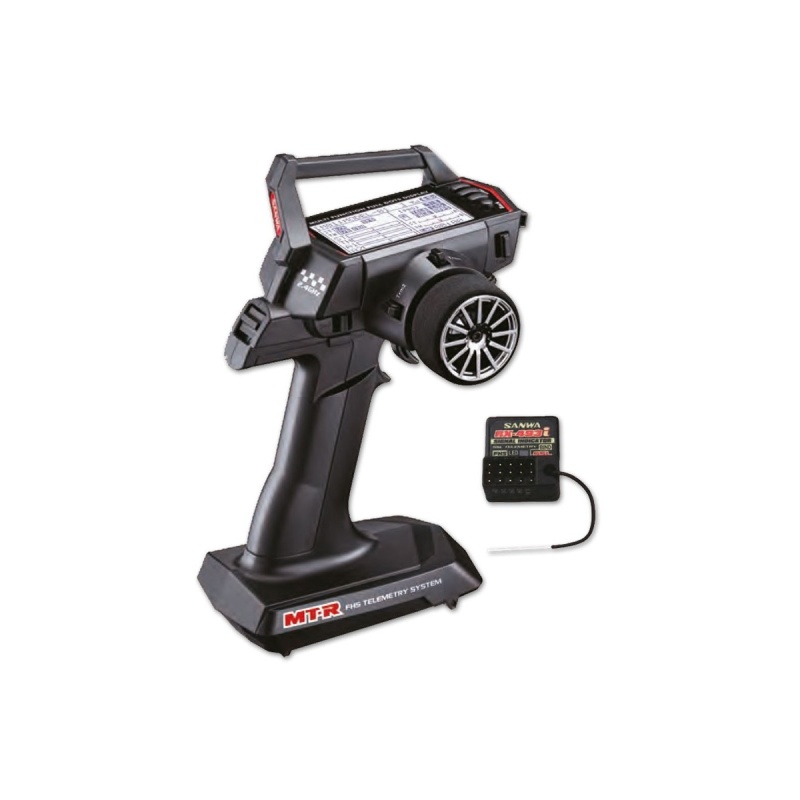

New Sanwa midrange radio set, FH5 RF mode compatible
FH5 RF mode is higher resolution than former FH4 RF mode.
Also, MT-R installed SUR (SANWA ULTRA RESPONSE) Mode which is faster mode than SSR (SANWA SUPER RESPONSE) mode which was installed in MT-S.
Combination with FH5 RF mode and SUR mode will give great smooth feeling.
Compatible receivers are RX-491, RX492, RX-492i RX-493, and RX-493i.
(FH3 and FH4 compatible receivers as RX-38*, 45*, 46*, 47*, and 48* cannot be used for MT-R)
*RX-492i and RX493i can be used with MT-R. But MT-R does not have indicator function, so indicator function does not work with MT-R.
Features
●WHITE LED BACK LIGHT●LARGE FULL-DOT LCD MONITOR(128x64dot)
●ST TH TENSION ADJUSTMENT●ADJUSTABLE TRIGGER
●TELEMETRY FUNCTION●DUAL RATE●SERVO SPEED●SERVO REVERSE
●TRIM/SUB TRIM●CURVE(EXPONENTIAL / ADJUSTABLE RATE CONTROL)
●FAIL SAFE(RADIO WAVES / BATTERY)●EPA●OFFSET●BIND●BASE
●FUNCTION●TH TYPE(70:30/50:50)●ANTI-LOCK BRAKE●MODEL NAME(10 LETTERS)
●MODEL MEMORY(20 MODELS)●MODEL(SELECT/CLEAR/COPY)
●TIMER(LAP / INTERVAL / DOWN)●LOGGER●ALERT SETTING●TELEMETRY SETTING
●KEY ASSIGN(SW / TRIM)●BUZZER(SCALE / VOLUME CHANGEABLE)
●TRANSMITTER BATTERY ALARM●LCD CONTRAST●VOLUME ADJUSTMENT
●SETUP WIZARD●RF MODE SETTING(FH5)●RESPONSE MODE (NOR/SHR/SSR/SUR)
●DIRECT MODEL SELECT●AUX1(SELECT THE OPERATION TYPE OF 3CH)
●AUX2(SELECT THE OPERATION TYPE OF 4CH)
●AUX TYPE SETTING
CODE AUX (COMPATIBLE WITH SUPER VORTEX Gen2 and Gen2 PRO & PGS Servo
Series & SGS-02 MENU)
STEP AUX (STEP 1 to 100)
POINT AUX (2 to 6 POINT)
4WS MIXING (FRONT/REAR/NORMAL/REVERSE
MOA MIXING(FRONT-WHEEL-DRIVE/4WD/REAR-WHEEL-DRIVE)
*DRIVE RATE IS VARIABLE.
AUX MIXING (ST MIXING, TH MIXING)
●4 CELL DRY BATTERY (AA x4)
●COMPATIBLE RECEIVER; RX-491, 492, 492i, 493, 493i
[SSL(SANWA SYNCHRONIZES LINK) SYSTEM]
SANWA SSL SYSTEM
●When used with compatible RX-491, 492, 492i, 493, 493i, Super Vortex Gen2 series,
SGS-02, and PGS servo series, the setting of ESC, Gyro, and Servos etc. by Transmitter
is available through SSL functions while driving.
●Since the setting can be done without the stop of car, the detailed adjustment in
accordance with Race conditions is available without interruption of Intervals and the
change of machine conditions.
[RESPONSE OF TELEMETRY SYSTEM]
●It is often said that telemetry system reduce response speed. However, SANWA Original
Data Processing and Algorithm Design makes Telemetry possible without response speed reduction
Our Excellent Telemetry System has no response speed reduction.
●With our telemetry system, the precious race data will help the next race setting and driving.
[RESPONSE MODE]
●Please do not use Analog Servo for SHR mode, SSR mode, or SUR mode.
If analog servo is used for SHR mode, SSR mode, or SUR mode, the servo will be broken
and will not work.
Digital servo (PGS series, SRG series, Digital ERG series, SDX series) can be used both
for NOR mode and SHR mode.
●SSR mode can be used only by SRG servo series and PGS servo series.
●In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02
and SBL-03CR do not work.
Please use NOR mode for the above ESC.
●SV-08, HV-10, HV-12, F2500 can work by NOR/SHR MODE.
●SUR mode can be used only by Super Vortex Gen2, Gen2 PRO, and PGS servo series.
