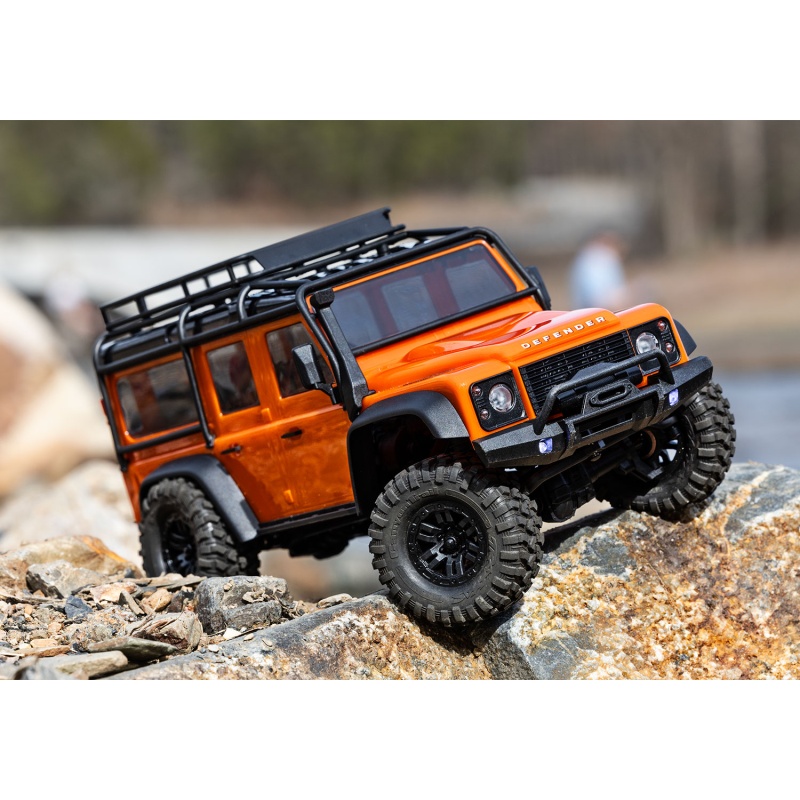

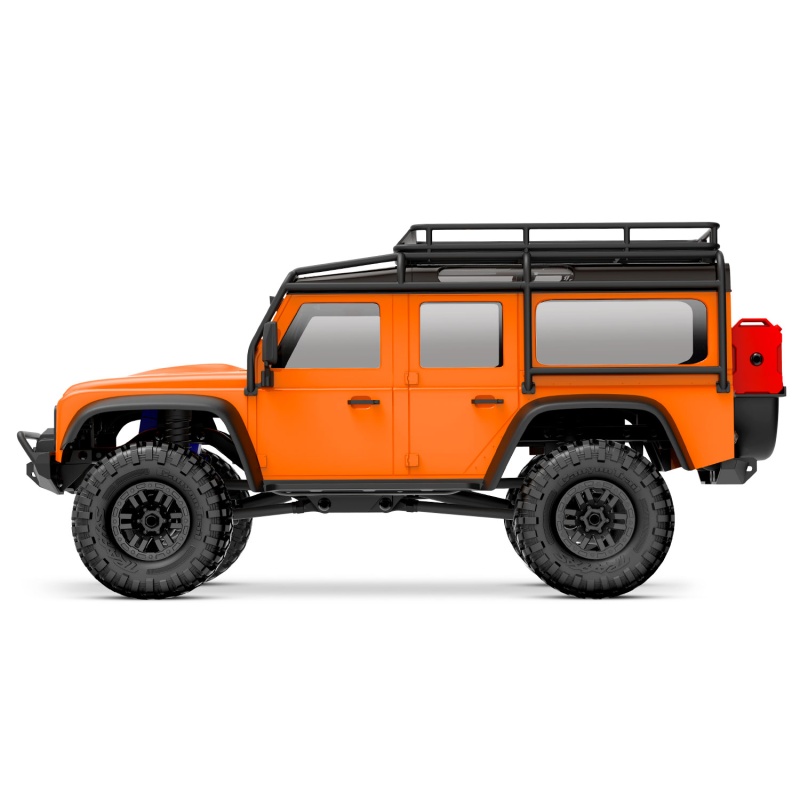

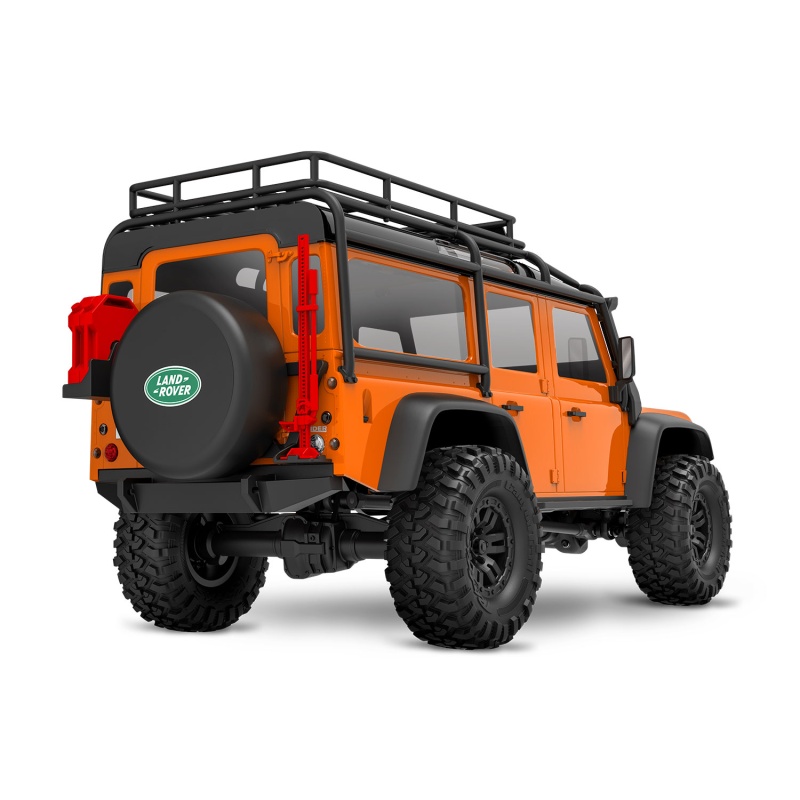

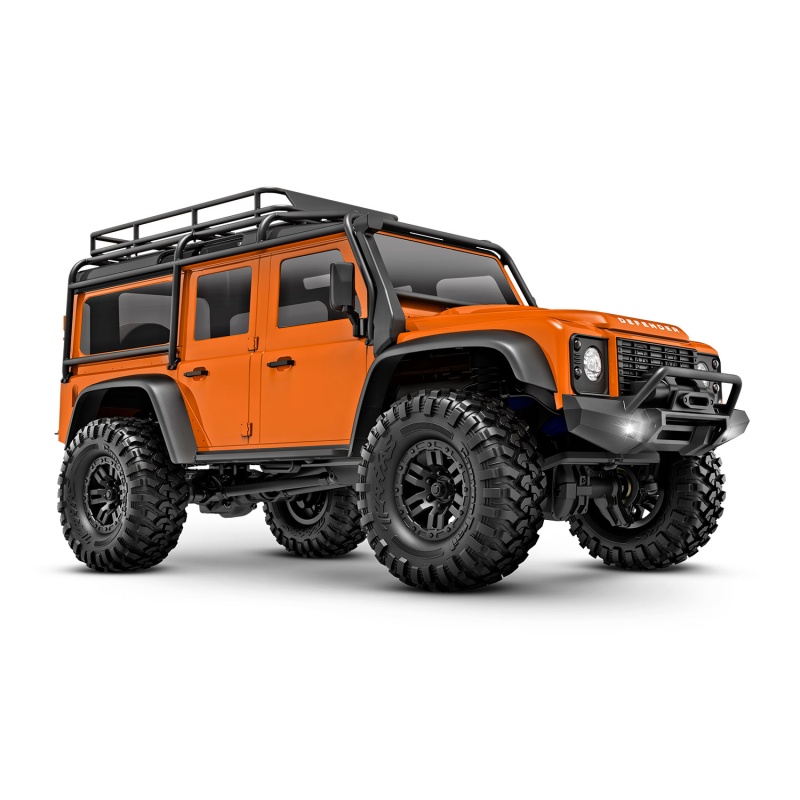

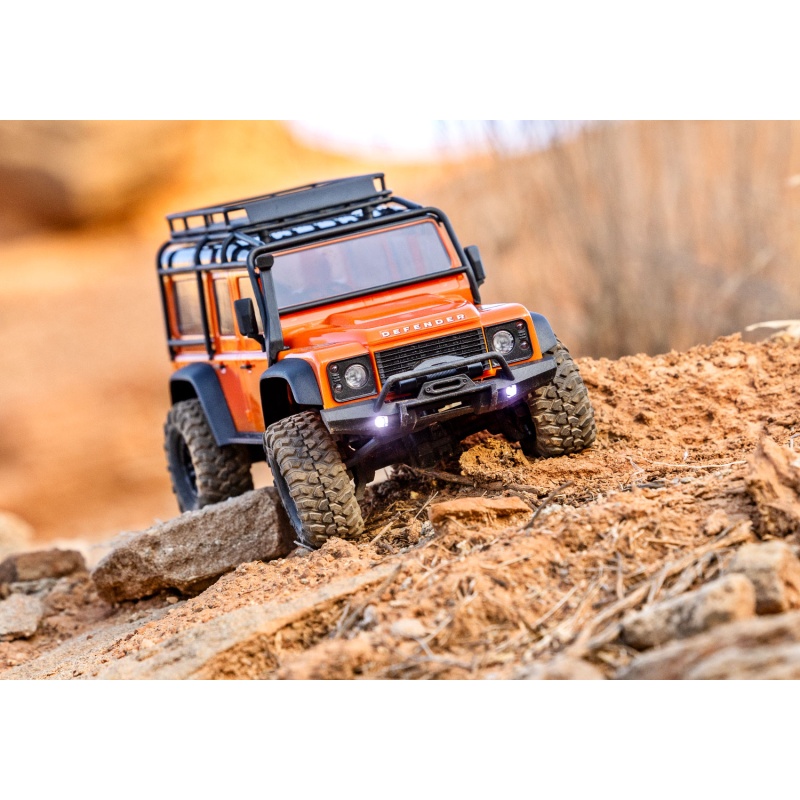

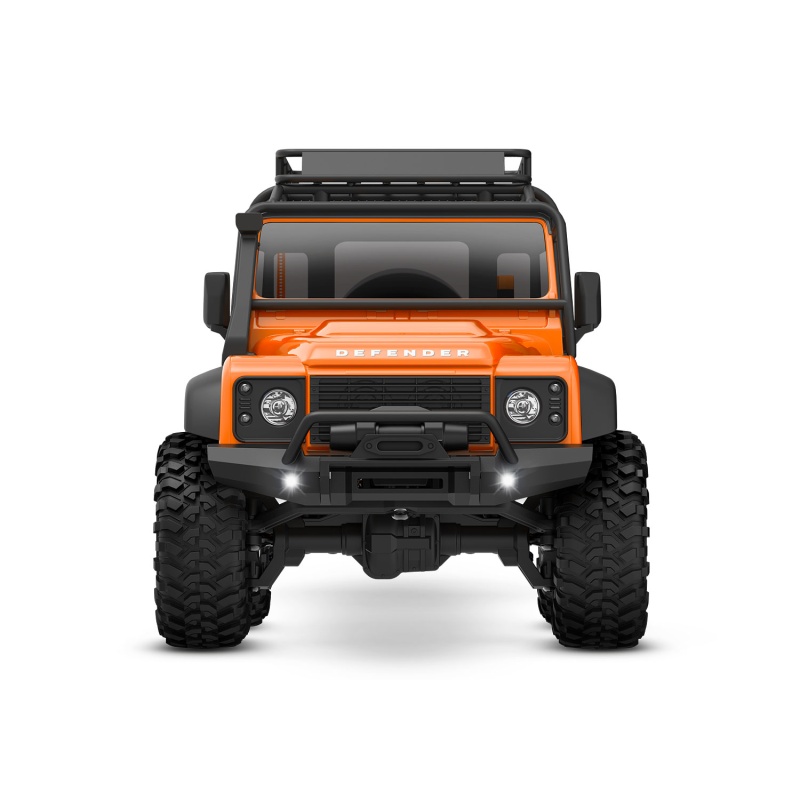

Traxxas 1/18 TRX-4M Land Rover Defender RTR, Oranž kere

Tootekood: TRX97054-1ORNG
EAN: 0020334039705
Kaubamärk:
Ühik: tk
Laoseis: 1
Hind:
189,00 €
Kogus: - +
   - või -

Video



Veermiku spetsifikatsioon

Pikkus: 262mm (Bronco)
279mm (Defender)
Rööbe ees: 124mm
Rööbe taga: 124mm
Kliirens: 29mm
Mass(ilma akuta): 468g (Bronco)
483g (Defender)
Kõrgus: 117mm (Bronco)
135mm (Defender)
Teljevahe: 155mm
Lähenemisnurk: 54° (Bronco)
52° (Defender)
Kõõlumisnurk: 45° (Bronco)
45° (Defender)
Eemaldumisnurk: 48° (Bronco)
41° (Defender)
Amordi pikkus (ees ja taga): 51mm
Rattahex: 7mm
Veljed (ees ja taga): 1.0 x 0.49 tolli (25.4 x 12.5mm)
Rehvid (ees ja taga): 2.2 x 1.0 tolli (57 x 25.4mm)
Elektrooniline kontrollmoodul (ECM): ECM-2.5
(kombo ESC, vastuvõtja, LEDide juhtimine*)
Mootor: Titan® 180 87T harjadega elektrimootor
Difrid: Pideva lukustusega; 2:1 silla ülekanne
Raami tüüp ja materjal: Terasest redelraami railid, plastikust vahedetailid
Pidurid: Elektroonilised mootoriga, mäepiduri funktsiooniga
Veoskeem: Kardaanidega pidev 4WD
Roolisüsteem: Sillale paigaldatud servo
Raadiosüsteem: TQ 2.4GHz 2-kanaliga saatja
Servo: #2065T
Oskuste tase: 1
Aku pesa: 50.5 x 31mm
* LED kit müügil eraldi (Pro Scale LED Light Kit)



Mootori Spetsifikatsioon

Tüüp: Harjadega mootor, väändele tuunitud
Surus: 180
Mass: 33g
Mõõdud:  Üldpikkus 42mm, kannu pikkus 34mm, diameeter 21mm
Keerud: 87T reverse rotation
Pinge: 8.4V



ECM spetsifikatsioon

Sisendpinge: 2s LiPo
Korpuse mõõdud: 32 x 46 x 15 mm
Mass: 26g
BEC pinge: 6.0 VDC
BEC voolutugevus: 1A
LiPo cutoff (LVD): 2-astmeline
Transistorite tüüp: MOSFET
Mootori ülekoormuskaitse: 2-astmeline
Profiilid: Sport Mode:
  100% edasi, 100% pidurid, 100% taurpidi
Trail Mode:
  100% edasi, 100% pidur, 100% tagurpidi, Trail-Tuned pidur neutraalasendis
Crawl Mode:
  100% edasi, 100% kohene tagurpidi, 100% pidur neutraalasendis



Features

  • Clipless ABS Body
    • Highly-detailed licensed bodies
      • Molded-in color won’t chip or flake
      • Tough fender flares and rock sliders
      • Realistic side mirrors, door handles, & wipers
      • LED bumper lights
    • Heavy-duty latching clips
      • Hold tightly on the trail
      • Release in just seconds
  • ECM-2.5 Electronic Control Module
    • Incorporates ESC, receiver, and LED controller in one chassis
    • Fully waterproof for all-weather fun
    • Three drive profiles
      • Sport Mode – forward / brake / reverse
      • Trail Mode – forward / brake / reverse / with trail-tuned drag brake in neutral
      • Crawl Mode – forward / instant reverse - no neutral with 100% hill holding brake
    • Traxxas EZ-Set® one-button setup
    • Built-in Pro Scale® LED functionality
    • Two-stage low voltage protection (LVD)
    • Motor overload protection
  • TQ 2.4GHz Transmitter
    • Full-size 2-channel transmitter
    • All-day comfort with precise long-range control
  • Motor
    • Powerful Titan® 87-turn brushed motor
    • Fixed gear mesh doesn’t require adjustment
    • Forward mounting position for improved crawling dynamics
  • Heavy-Duty Steel Ladder Frame
    • Deep C-channel design
    • Thicker center section for maximum rigidity
    • Rails run from bumper to bumper
  • Drivetrain
    • Full-time shaft-driven 4-wheel drive
    • Solid steel axles
    • Spool-equipped front and rear axles
    • Heavy-duty CV center driveshafts
  • Low-CG Battery Tray
    • Concentrates weight lower for improved stability
    • Wide rubber strap secures battery in place
  • Optional Transmission Ratios (sold separately)
    • Optional Low Range or Speed Gearing transmissions
      • Modular design swaps out in minutes
  • Steering
    • Heavy-duty 2065T steering servo
      • Metal main gear
    • Superior 45° steering angle
    • Direct steering (no servo saver)
  • Suspension
    • Triangulated 4 link front and rear
    • Heavy-duty rod ends
  • Oil-Filled GTM Shocks
    • Provides smooth controlled damping
    • Realistic driving body movements
    • Adjustable pre-load spacers
    • Easily refreshed with available rebuild kits
  • Wheels and Tires
    • Highly-detailed 1" Replica wheels
      • 7mm hex
    • Pre-mounted tires
      • BF-Goodrich® Mud Terrain T/A® KM3 (Bronco)
      • Canyon AT (Defender)
      • Trail-tuned rubber compound
  • Battery and Charger Included
    • High-capacity 2-cell LiPo battery
      • 7.4 volts
      • 750mAh for over an hour of run time
    • 2-amp USB-powered fast charger
    • iD® technology for faster, safer charging
  • Low-Maintenance Self-Lubricating Bushings
  • Durable Hex hardware



Komplektis on:

  • TRX-4M® sõiduvalmis mudel
  • Litsentseeritud ABS kõvakere
  • Titan® 180 87T harjadega mootor
  • ECM-2.5 Elektrooniline kontrollmoodul
  • TQ saatja
  • 7.4 V 750mAh 2S LiPo aku
  • 2A USB laadija iD®
  • Mõned tööriistad mudeli hooldamiseks



Lisaks vajad:

  • AA patareid saatjasse (4 tk)
